HMC511LP5E - Analog Devices

Description: Analog Devices Hittite HMC511LP5E, Voltage Controlled Oscillator,

Download HMC511LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

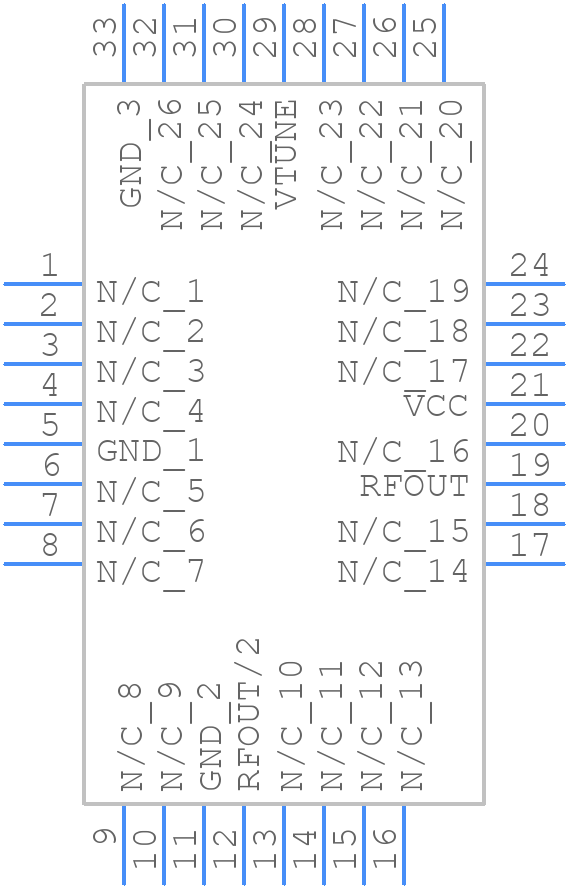

Symbol
HMC511LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC511LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD 5mmX5mm
click to zoom
3D Models
HMC511LP5E - Analog Devices - 3D model - Quad Flat No-Lead - 32 LEAD 5mmX5mm
click to zoom

HMC511LP5E Details

  • Manufacturer Part Number:

    HMC511LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    15 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    10150 MHz

  • Operating Frequency-Min:

    9050 MHz

  • Operating Frequency-Nom:

    10150 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    9 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Phase Noise:

    -115 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    300 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC511LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC511LP5E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The maximum input power that the HMC511LP5E can handle is +20 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • Use a spectrum analyzer to check the output frequency and power. Verify the input signal is within the specified range and the device is properly biased. Check for any signs of overheating or physical damage.
  • The HMC511LP5E is rated for operation up to 85°C. However, high temperatures can affect the device's performance and reliability. Ensure proper heat sinking and thermal management to maintain a safe operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC511LP5E Overview

Use the download button to access the HMC511LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC51, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
