HMC512LP5ETR footprint, schematic symbol and 3D model by Analog Devices

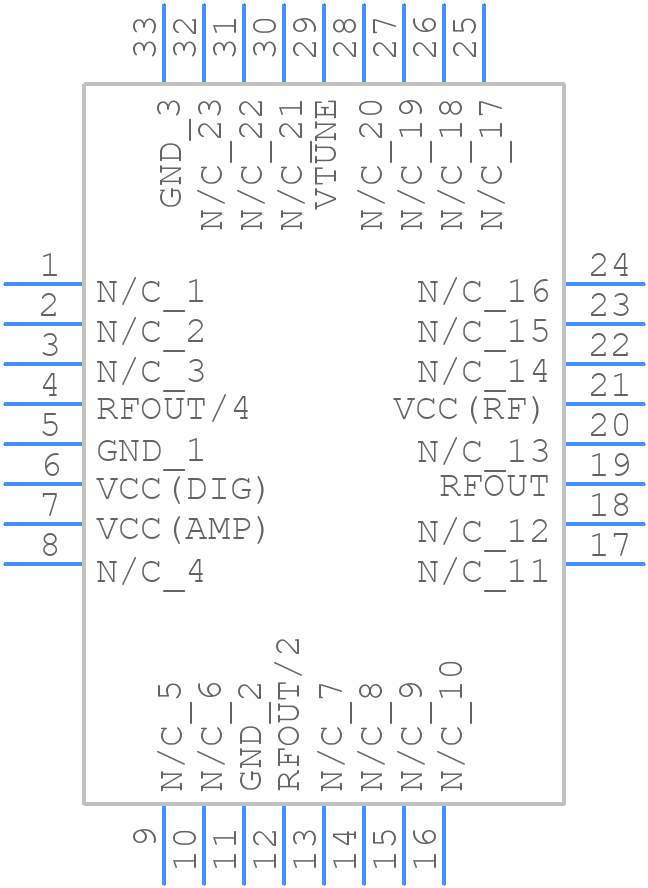

Symbol

click to zoom

PCB Footprints

HMC512LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC512LP5ETR
Part Number HMC512LP5ETR
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP_2026-1.5
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 11:18 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC512LP5ETR Details

Manufacturer Part Number:
HMC512LP5ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32
Pin Count:
32
Manufacturer Package Code:
HCP-32-1
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Additional Feature:
TAPE AND REEL
Control Voltage-Max:
13 V
Control Voltage-Min:
2 V
JESD-609 Code:
e3
Modulation Sensitivity:
30 MHz/V
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
32
Offset Frequency:
100 kHz
Operating Frequency-Max:
10800 MHz
Operating Frequency-Min:
9600 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
3 dBm
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC32,.2SQ,20
Phase Noise:
-110 dBc/Hz
Physical Dimension:
5.1mm x 5.1mm x 1.0mm
Qualification Status:
Not Qualified
Supply Current-Max:
370 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
GAAS
Terminal Finish:
Matte Tin (Sn) - annealed

HMC512LP5ETR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
Use a network analyzer to measure the input and output impedance of the device. Then, use a Smith chart to design and optimize the matching networks for maximum gain and efficiency.
Derate the voltage by 10% and the current by 20% to ensure reliable operation. Also, ensure that the junction temperature is below 125°C.
Use a stability analysis tool to identify potential oscillation frequencies. Add resistive or capacitive loading to the output stage to prevent oscillations. Ensure that the amplifier is properly biased and that the input and output impedances are matched.
Handle the device with an ESD wrist strap or mat. Use an ESD-protected workstation and follow proper ESD handling procedures. The device has built-in ESD protection, but it's still important to follow proper handling procedures to prevent damage.
