HMC513LP5E - Analog Devices

Description: 5.4725GHz, 10.945GHz Center Frequency 2 V ~ 13 V Voltage Controlled Oscillator -7±3, 8±3, 7.5±2.5 dBm 15 2nd Harmonic Typ (dBc)

Download HMC513LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

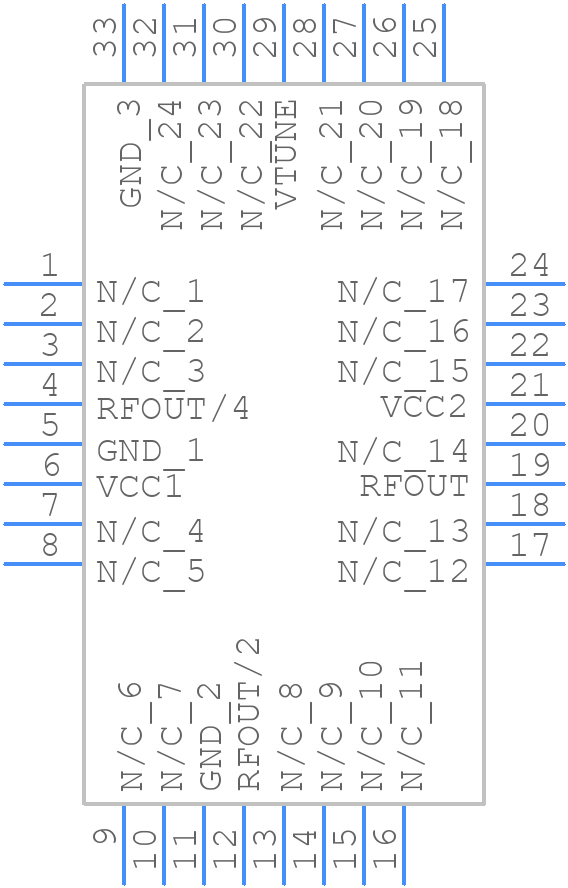

Symbol
HMC513LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC513LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.56
click to zoom

HMC513LP5E Details

  • Manufacturer Part Number:

    HMC513LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    25 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    11460 MHz

  • Operating Frequency-Min:

    10430 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    5 dBm

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    290 mA

  • Supply Voltage-Max:

    3.25 V

  • Supply Voltage-Min:

    2.75 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC513LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC513LP5E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a quiet power supply, and the Vee pin should be connected to a quiet ground.
  • The maximum input power that the HMC513LP5E can handle is +20 dBm. Exceeding this limit may cause damage to the device.
  • The HMC513LP5E has a serial interface that can be connected to a microcontroller's SPI or I2C interface. Ensure the microcontroller's interface is configured to match the HMC513LP5E's interface mode (SPI or I2C).
  • The typical settling time of the HMC513LP5E is 100 ns. This is the time it takes for the output to settle to within 1% of the final value after a change in input.
