HMC514LP5E - Analog Devices

Description: MMIC VCO w/ HALF FREQUENCY OUTPUT & DIVIDE-BY-4, 11.1 - 12.4 GHz, 32 Lead 5x5mm SMT Package

Download HMC514LP5E Model

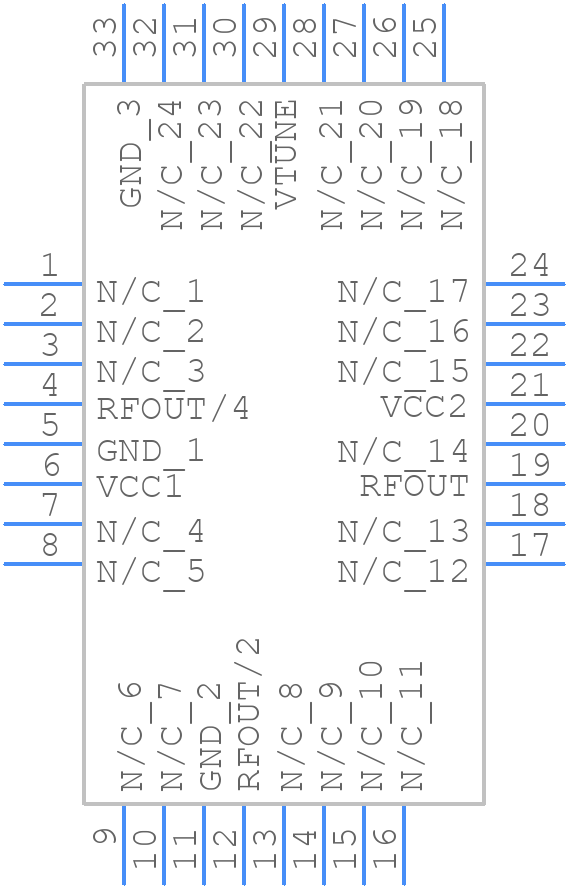

Schematic
