HMC514LP5ETR - Analog Devices

Description: VCO Oscillators VCO w/ Fo/2 & Div/4, 11.17 - 12.02 GHz

Download HMC514LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

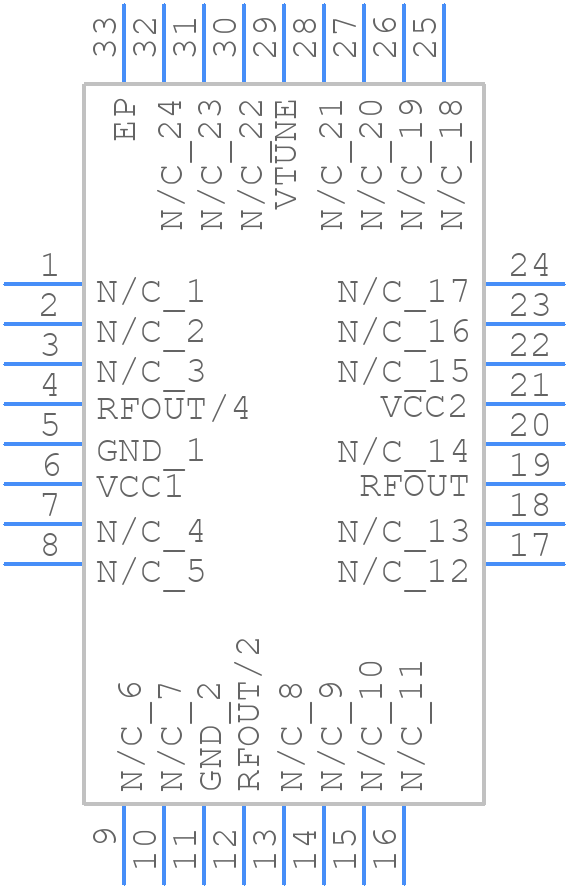

HMC514LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC514LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD 5mmX5mm
click to zoom
3D Models
HMC514LP5ETR - Analog Devices - 3D model - Quad Flat No-Lead - 32 LEAD 5mmX5mm
click to zoom

HMC514LP5ETR Details

  • Manufacturer Part Number:

    HMC514LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TAPE AND REEL

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    18 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    12020 MHz

  • Operating Frequency-Min:

    11170 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    5 dBm

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    290 mA

  • Supply Voltage-Max:

    3.25 V

  • Supply Voltage-Min:

    2.75 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC514LP5ETR Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC514LP5ETR involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing signals under the device.
  • To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. The device requires a single 5V supply, and the VCC pin should be decoupled with a 10nF capacitor. Additionally, the bias voltage (VBIAS) should be set to 2.5V using a voltage divider or a dedicated voltage reference.
  • The HMC514LP5ETR is designed to handle up to 30dBm of output power. However, the actual power handling capability may vary depending on the specific application and operating conditions. It's recommended to consult with Analog Devices' application engineers for specific guidance on power handling and thermal management.
  • To troubleshoot common issues with the HMC514LP5ETR, start by verifying the PCB layout and ensuring that the device is properly biased. Check for any signs of oscillation or instability, such as excessive current draw or heat generation. Use a spectrum analyzer to monitor the output signal and look for any signs of spurious emissions or frequency hopping. Consult the datasheet and application notes for specific troubleshooting guidance.
  • The HMC514LP5ETR is a sensitive device and requires proper ESD protection measures to prevent damage. Use ESD-safe handling and storage procedures, and ensure that the device is properly grounded during handling. Consider using ESD protection devices, such as TVS diodes or ESD protection arrays, on the input and output pins.
