HMC515LP5E - Analog Devices

Description: VCO Oscillators VCO w/ Fo/2 & Div/4, 11.5 - 12.5 GHz

Download HMC515LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

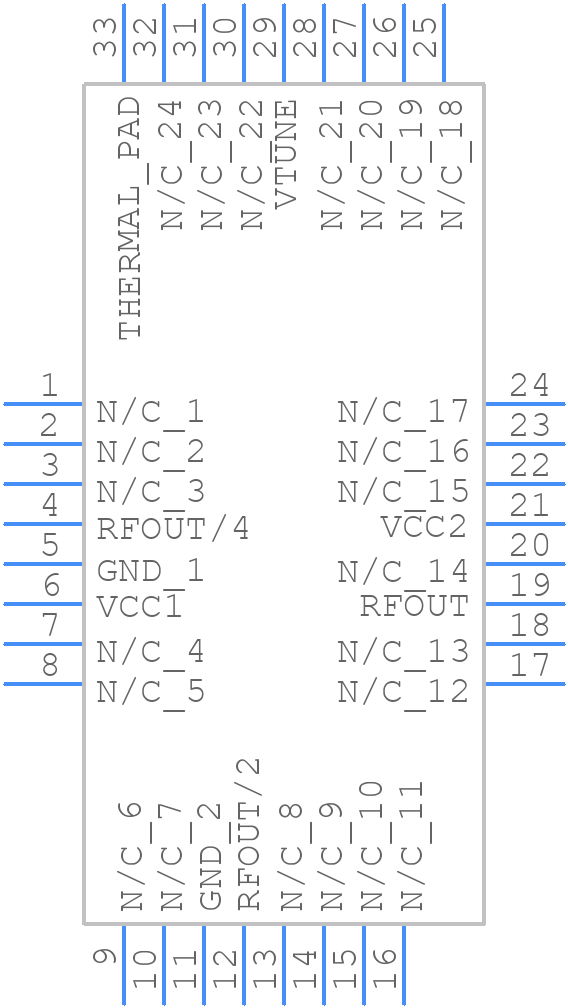

Symbol
HMC515LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC515LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC584
click to zoom
3D Models
HMC515LP5E - Analog Devices - 3D model - Quad Flat No-Lead - HMC584
click to zoom

HMC515LP5E Details

  • Manufacturer Part Number:

    HMC515LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    6 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    12500 MHz

  • Operating Frequency-Min:

    11500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    6 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    240 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC515LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF capacitors, and the bias voltage (Vbias) is set to the recommended 5V. Also, ensure the input and output impedance matching for optimal performance.
  • The HMC515LP5E can handle up to 1W of power, but it's recommended to derate the power handling to 0.5W to ensure reliable operation and minimize thermal issues.
  • Check for proper PCB layout, decoupling, and impedance matching. Ensure the input and output signals are properly terminated, and the device is operated within the recommended operating conditions.
  • Yes, the HMC515LP5E can be used in a push-pull configuration, but ensure the output stage is properly biased and the output impedance is matched to the load impedance to avoid oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC515LP5E Overview

Use the download button to access the HMC515LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC51, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
