HMC529LP5 - Analog Devices

Description: RF IC VCO General Purpose 12.4GHz ~ 13.4GHz Triple Outputs (Divide by 2, Divide by 4, Standard) 32-QFN (5x5)

Download HMC529LP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

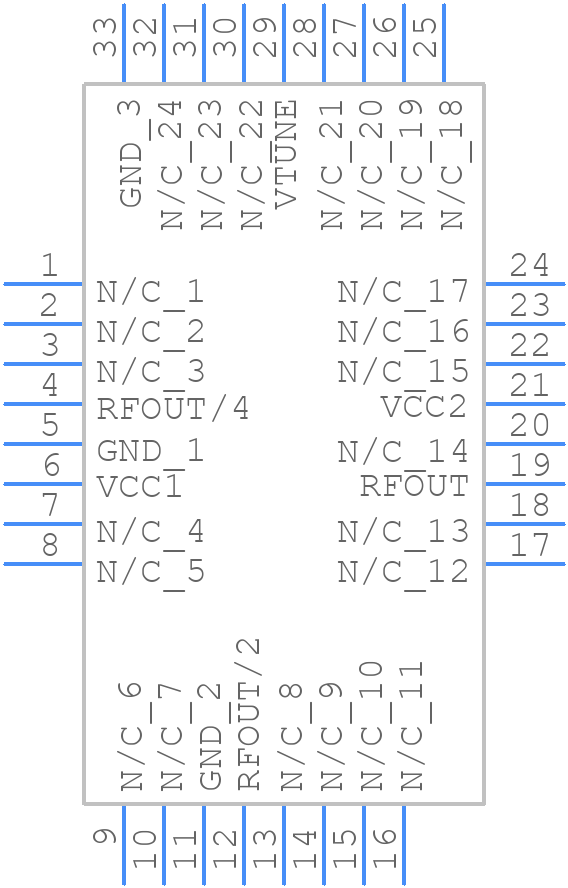

Symbol
HMC529LP5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC529LP5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.56
click to zoom

HMC529LP5 Details

  • Manufacturer Part Number:

    HMC529LP5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e0

  • Modulation Sensitivity:

    6 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    13400 MHz

  • Operating Frequency-Min:

    12400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    4 dBm

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    300 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC529LP5 Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC529LP5 involves keeping the signal paths short, using a solid ground plane, and placing bypass capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the ground plane, and two layers for the power supply and control signals.
  • To optimize the HMC529LP5 for low noise performance, it's essential to use a low noise power supply, decouple the power supply lines with capacitors, and use a good quality PCB with a solid ground plane. Additionally, keeping the device away from noise sources, using shielding, and minimizing the number of vias and layer transitions can also help reduce noise.
  • The HMC529LP5 can operate over a temperature range of -40°C to +85°C, but it's recommended to operate it within a temperature range of -20°C to +70°C for optimal performance and reliability.
  • To troubleshoot common issues with the HMC529LP5, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the device is properly biased and that the input and output impedances are matched. If the issue persists, check for any signs of overheating, and ensure that the device is properly cooled. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the HMC529LP5 can be used in a push-pull configuration, but it requires careful design and layout to ensure that the two devices are properly synchronized and that the output signals are properly combined. It's recommended to consult the datasheet and application notes for guidance on push-pull configurations.
