HMC529LP5ETR - Analog Devices

Description: VCO Oscillators HMC529LP5ETR & Div/4, 12.4 - 13.4 GHz

Download HMC529LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

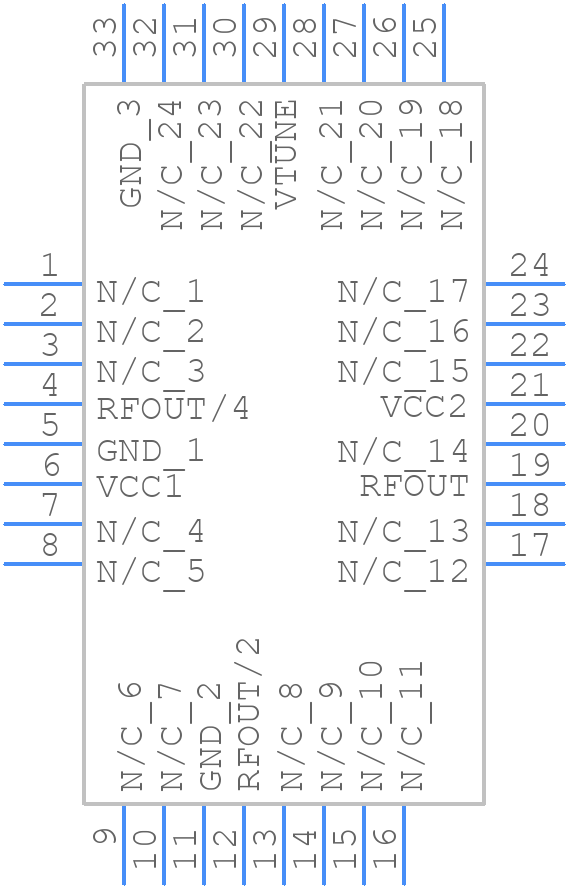

Symbol
HMC529LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC529LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 Lead 5x5mm SMT_2022
click to zoom
3D Models
HMC529LP5ETR - Analog Devices - 3D model - Quad Flat No-Lead - 32 Lead 5x5mm SMT_2022
click to zoom

HMC529LP5ETR Details

  • Manufacturer Part Number:

    HMC529LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TAPE AND REEL

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    6 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    13400 MHz

  • Operating Frequency-Min:

    12400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    4 dBm

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    300 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC529LP5ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
  • Optimize the output power and efficiency by adjusting the input power, bias voltage, and output load impedance. Use the device's built-in power detector to monitor output power and adjust accordingly.
  • Use a pi-network or a T-network for input and output matching. The exact values of the matching components depend on the specific application and frequency of operation.
  • Use a low-noise amplifier (LNA) before the HMC529LP5ETR, and ensure proper impedance matching and filtering to minimize noise and spurious signals.
  • The device has a maximum junction temperature of 150°C and a maximum power dissipation of 10W. Ensure proper thermal management and power handling to prevent overheating and damage.
