HMC531LP5 footprint, schematic symbol and 3D model by Analog Devices

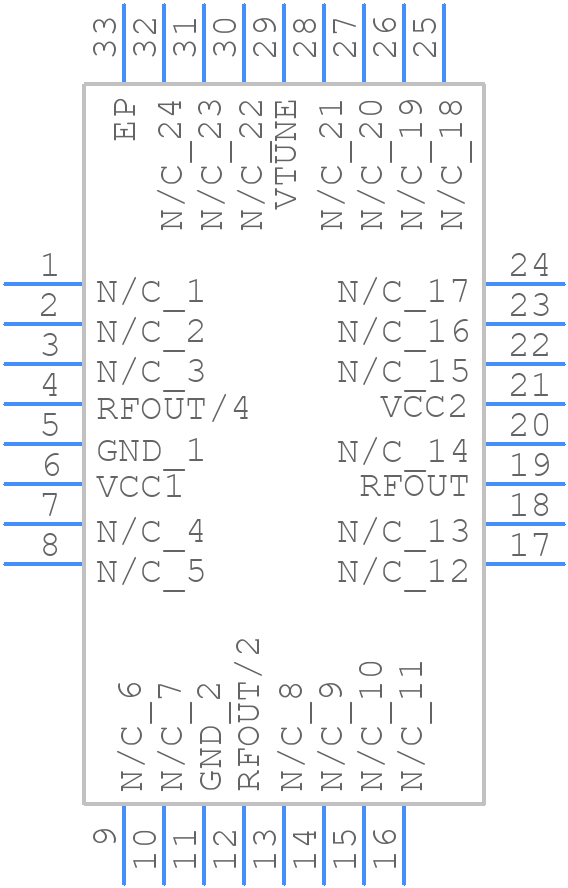

Symbol

click to zoom

PCB Footprints

HMC531LP5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 Lead 5x5mm SMT-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC531LP5
Part Number HMC531LP5
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 32 Lead 5x5mm SMT-1
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 12:17 PM UTC
Pinout / Pin List Click Here (Member Only)

HMC531LP5 Details

Manufacturer Part Number:
HMC531LP5
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Active
Package Description:
PLASTIC, LEADLESS, QFN-32
Pin Count:
32
Manufacturer Package Code:
HCP-32-1
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Control Voltage-Max:
13 V
Control Voltage-Min:
2 V
JESD-609 Code:
e0
Modulation Sensitivity:
6 MHz/V
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
32
Offset Frequency:
100 kHz
Operating Frequency-Max:
14900 MHz
Operating Frequency-Min:
13600 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
3 dBm
Phase Noise:
-110 dBc/Hz
Physical Dimension:
5.1mm x 5.1mm x 1.0mm
Supply Current-Max:
300 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Terminal Finish:
Tin/Lead (Sn/Pb)

HMC531LP5 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
The HMC531LP5 requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a quiet power supply, and the Vee pin should be connected to a quiet ground.
The HMC531LP5 can operate up to 6 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. In general, the device can operate up to 4 GHz with minimal degradation in performance.
To minimize the noise figure, ensure the input signal is properly matched to the device, and the output is properly terminated. Use a low-noise power supply, and ensure the PCB layout is optimized for minimal noise coupling.
The recommended operating temperature range for the HMC531LP5 is -40°C to +85°C. However, the device can operate up to +100°C with some degradation in performance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HMC531LP5 Overview

Use the download button to access the HMC531LP5 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC53, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
