HMC533LP4E - Analog Devices

Description: Oscillator VCO 23800MHz to 24800MHz 5V 24-Pin LFCSP EP SMD T/R

Download HMC533LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

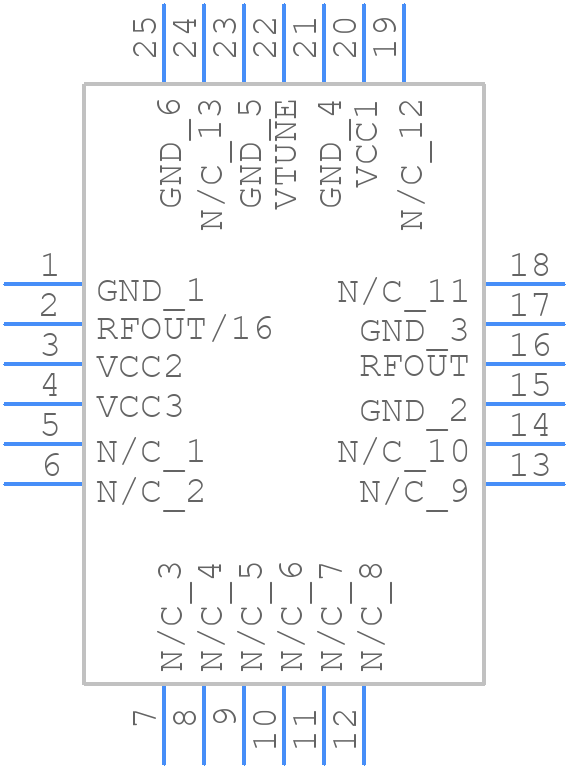

HMC533LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC533LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-QFN (4x4)
click to zoom
3D Models
HMC533LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24-QFN (4x4)
click to zoom

HMC533LP4E Details

  • Manufacturer Part Number:

    HMC533LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    80 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    24800 MHz

  • Operating Frequency-Min:

    23800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    9 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Phase Noise:

    -95 dBc/Hz

  • Physical Dimension:

    4.1mm x 4.1mm x 1.0mm

  • Supply Current-Max:

    260 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC533LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC533LP4E requires a single +3.3V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The HMC533LP4E can operate up to 6 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. It's recommended to consult the datasheet and application notes for specific guidance.
  • Ensure good thermal conductivity by using a thermal pad or thermal tape to attach the device to a heat sink or metal plate. Keep the device away from heat sources and ensure good airflow around the device.
  • The HMC533LP4E has internal ESD protection, but it's still recommended to use external ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC533LP4E Overview

Use the download button to access the HMC533LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC53, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
