HMC533LP4ETR footprint, schematic symbol and 3D model by Analog Devices

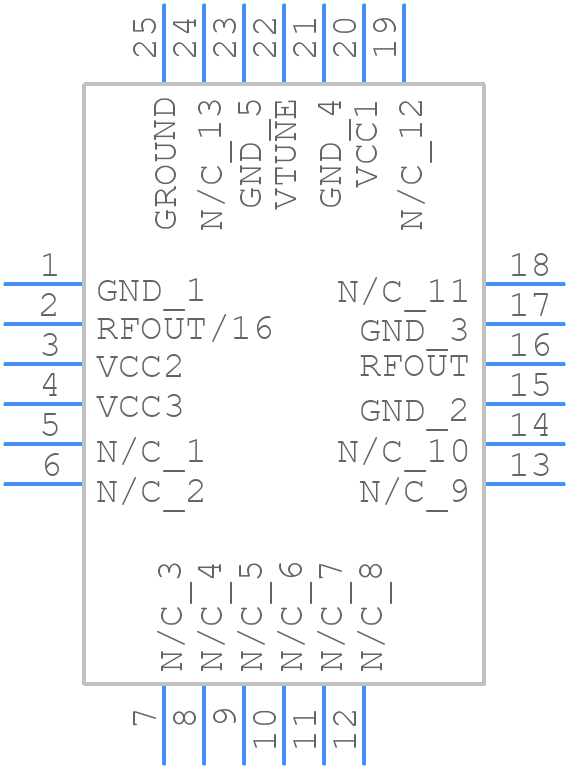

Symbol

click to zoom

PCB Footprints

HMC533LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC533LP4ETR
Part Number HMC533LP4ETR
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 8:00 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC533LP4ETR Details

Manufacturer Part Number:
HMC533LP4ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-24
Pin Count:
24
Manufacturer Package Code:
HCP-24-2
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Additional Feature:
TAPE AND REEL
Control Voltage-Max:
13 V
Control Voltage-Min:
2 V
JESD-609 Code:
e3
Modulation Sensitivity:
80 MHz/V
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
24
Offset Frequency:
100 kHz
Operating Frequency-Max:
24800 MHz
Operating Frequency-Min:
23800 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
9 dBm
Phase Noise:
-95 dBc/Hz
Physical Dimension:
4.1mm x 4.1mm x 1.0mm
Supply Current-Max:
260 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
