HMC534LP5ETR - Analog Devices

Description: VCO Oscillators VCO w/ Fo/2 & Div/4, 10.6 - 11.8 GHz

Download HMC534LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

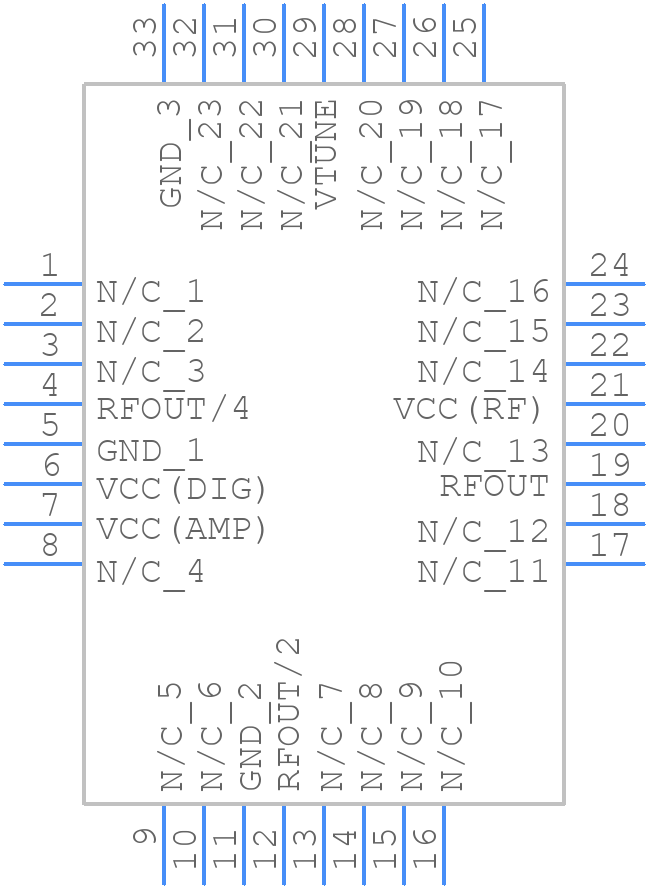

HMC534LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC534LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead QFN (5mm x 5mm w/ EP)
click to zoom
3D Models
HMC534LP5ETR - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead QFN (5mm x 5mm w/ EP)
click to zoom

HMC534LP5ETR Details

  • Manufacturer Part Number:

    HMC534LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TAPE AND REEL

  • Control Voltage-Max:

    12 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    20 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    11800 MHz

  • Operating Frequency-Min:

    10600 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    9 dBm

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    380 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC534LP5ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
  • Use a network analyzer to measure the input and output impedance of the device. Then, use a simulation tool like ADS or AWR to design and optimize the matching networks for maximum gain and efficiency.
  • Derate the voltage by 10-15% and the current by 20-25% to ensure high reliability and long-term operation. Consult the datasheet and application notes for specific guidelines.
  • Ensure proper decoupling of the power supply lines, use a low-ESR capacitor for bypassing, and add a series resistor to the output stage to prevent oscillations. Also, use a stability analysis tool to simulate and optimize the circuit.
  • Handle the device with an ESD wrist strap or mat, and use an ESD-protected workstation. Ensure that the device is stored in an anti-static bag or container when not in use.
