- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC535LP4E
- Part Number HMC535LP4E
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HMC535LP4E
- Released Date May 21, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC535LP4E Details
-
Manufacturer Part Number:
HMC535LP4E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-24
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-24-2
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC535LP4E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a heat sink and thermal interface material. Refer to the application note AN-1369 for more details.
-
Optimize the output power and efficiency by adjusting the input power, bias voltage, and load impedance. Use the device's built-in power detector and adjust the bias voltage to achieve the desired output power. Refer to the application note AN-1369 for more details.
-
The recommended input and output matching networks can be found in the application note AN-1369. The input matching network should be designed to match the 50 ohm input impedance, and the output matching network should be designed to match the load impedance.
-
To reduce the noise figure, ensure that the input signal is properly matched to the device's input impedance. Use a low-noise amplifier or a noise filter at the input stage. Additionally, ensure that the device is operated within its recommended operating conditions.
-
The HMC535LP4E has a maximum junction temperature of 150°C. Ensure that the device is operated within its recommended operating conditions to prevent overheating. Use a heat sink and thermal interface material to ensure good thermal conductivity.
Trust Checks
Community Provided
System Verified
Community Approved
HMC535LP4E Overview

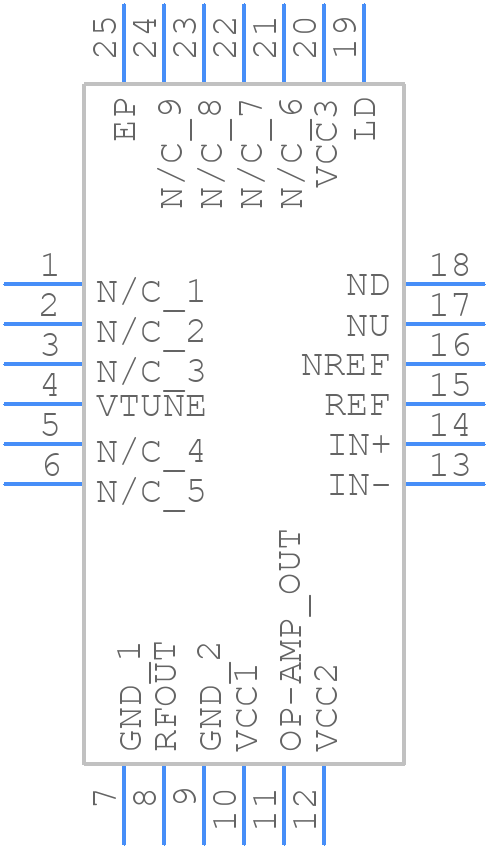

Use the download button to access the HMC535LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC53,
or try a keyword search, such as Voltage Controlled Oscillators
