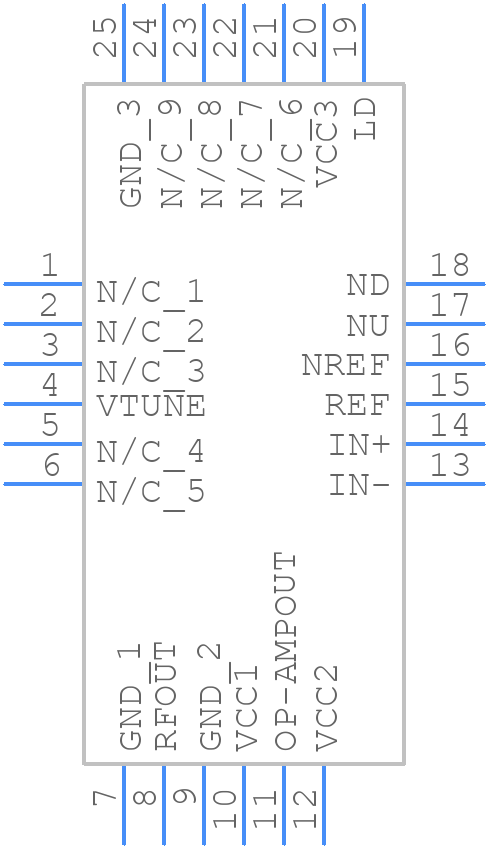

HMC535LP4ETR - Analog Devices

HMC535LP4ETR Details

• Manufacturer Part Number:

  HMC535LP4ETR

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-24

• Pin Count:

  24

• Manufacturer Package Code:

  HCP-24-2

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  TAPE AND REEL

• Control Voltage-Max:

  13 V

• JESD-609 Code:

  e3

• Modulation Sensitivity:

  590 MHz/V

• Mounting Feature:

  SURFACE MOUNT

• Number of Terminals:

  24

• Offset Frequency:

  100 kHz

• Operating Frequency-Max:

  15400 MHz

• Operating Frequency-Min:

  14700 MHz

• Operating Frequency-Nom:

  15400 MHz

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Oscillator Type:

  VOLTAGE CONTROLLED OSCILLATOR

• Output Power:

  6 dBm

• Package Body Material:

  PLASTIC/EPOXY

• Package Equivalence Code:

  LCC24,.16SQ,20

• Phase Noise:

  -110 dBc/Hz

• Physical Dimension:

  4.1mm x 4.1mm x 1.0mm

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  340 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)
