HMC536MS8G - Analog Devices

Description: RF Switch ICs 3 Watt SPDT T/R Switch SMT, DC - 6 GHz

Download HMC536MS8G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

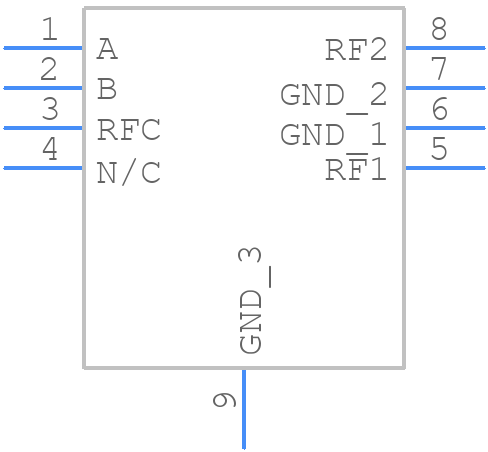

HMC536MS8G - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC536MS8G - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RH-8-1)
click to zoom
3D Models
HMC536MS8G - Analog Devices - 3D model - Small Outline Packages - (RH-8-1)
click to zoom

HMC536MS8G Details

  • Manufacturer Part Number:

    HMC536MS8G

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    23 dB

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.03 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    ABSORP/REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • VSWR-Max:

    1.12

HMC536MS8G Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity and heat dissipation by using a heat sink and thermal interface material.
  • Use a low-noise, high-PSRR power supply with a minimum of 10uF decoupling capacitors on each power pin, and consider adding a 10nF capacitor in parallel for high-frequency decoupling.
  • Use a conjugate match at the input and output ports, taking into account the device's S-parameters and the system's impedance. Consult the datasheet and application notes for guidance.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI. Ensure that the device is properly decoupled and that the PCB layout minimizes radiation and susceptibility.
  • Use a vector network analyzer (VNA) or a spectrum analyzer to measure S-parameters, gain, and noise figure. Consult the datasheet and application notes for specific test procedures and setup guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC536MS8G Overview

Use the download button to access the HMC536MS8G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC53, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
