HMC536MS8GE - Analog Devices

Description: Analog Devices HMC536MS8GE, RF Switch Circuit 6GHz 23dB Isolation GaAs MMIC 8-Pin MS8G

Download HMC536MS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

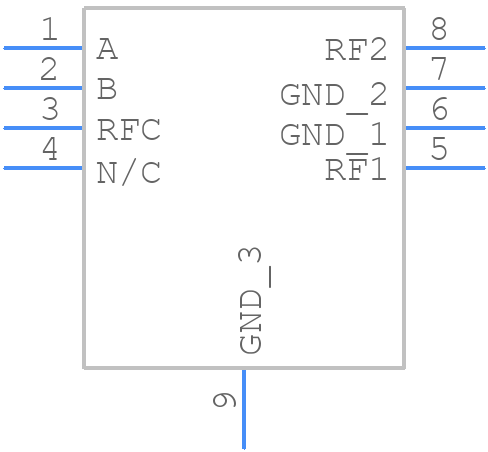

HMC536MS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC536MS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H536
click to zoom
3D Models
HMC536MS8GE - Analog Devices - 3D model - Small Outline Packages - H536
click to zoom

HMC536MS8GE Details

  • Manufacturer Part Number:

    HMC536MS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    23 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.03 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.12

HMC536MS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a heat sink and thermal interface material. Refer to the application note AN-1369 for more details.
  • Use the ADIsimRF design tool to simulate and optimize the biasing and tuning of the device. The tool provides a graphical interface to adjust parameters and visualize the results.
  • Use a vector network analyzer (VNA) to measure S-parameters, and a spectrum analyzer to measure noise figure and gain. Refer to the application note AN-1369 for a detailed test and measurement procedure.
  • Follow the recommended assembly and handling procedures to prevent damage. Ensure proper thermal management, and consider using a hermetic package or conformal coating for harsh environments.
  • Potential sources of EMI and RFI include the device's high-frequency signals, power supply noise, and PCB layout. Mitigation techniques include using shielding, filtering, and proper PCB layout and grounding.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC536MS8GE Overview

Use the download button to access the HMC536MS8GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC53, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
