HMC536MS8GETR - Analog Devices

Description: RF Switch ICs 3 Watt SPDT T/R Switch SMT, DC - 6 GHz

Download HMC536MS8GETR Model

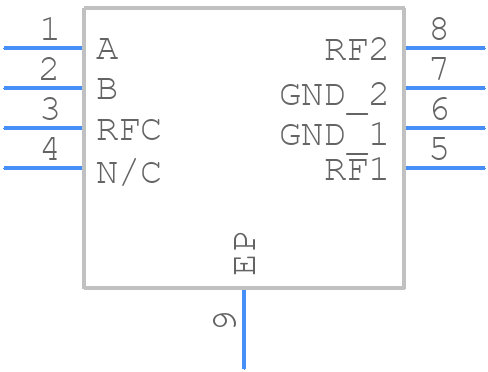

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC536MS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H536-2
click to zoom
3D Models
HMC536MS8GETR - Analog Devices  - 3D model - Small Outline Packages - H536-2
click to zoom

HMC536MS8GETR Details

  • Manufacturer Part Number:

    HMC536MS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    27 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.03 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.12

HMC536MS8GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity and heat dissipation to maintain junction temperature below 125°C.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a load-pull analysis to determine the optimal impedance matching.
  • Operate the device within the recommended voltage range (3.3V to 5V) and temperature range (-40°C to 85°C). Ensure proper power sequencing and decoupling to prevent damage.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI. Ensure that the device is placed in a shielded enclosure and that all cables are properly filtered and shielded.
  • The HMC536MS8GETR is suitable for a wide range of applications, including microwave radios, satellite communications, radar systems, and test and measurement equipment.
