HMC536MS8GTR - Analog Devices

Description: RF Switch ICs 3 Watt SPDT T/R Switch SMT, DC - 6 GHz

Download HMC536MS8GTR Model

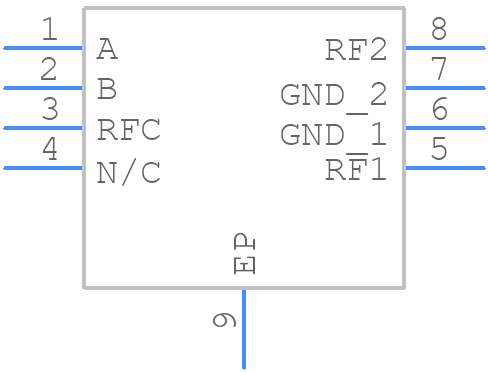

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC536MS8GTR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8-1
click to zoom
3D Models
HMC536MS8GTR - Analog Devices  - 3D model - Small Outline Packages - MSOP-8-1
click to zoom

HMC536MS8GTR Details

  • Manufacturer Part Number:

    HMC536MS8GTR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    27 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.03 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    TRANSFER SWITCH

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.12
