- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC540LP3E
- Part Number HMC540LP3E
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HMC540LP3E
- Released Date Jun 5, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC540LP3E Details
-
Manufacturer Part Number:
HMC540LP3E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
3 X 3 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 16 PIN
-
Pin Count:
16
-
Manufacturer Package Code:
HCP-16-3
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC540LP3E Frequently Asked Questions (FAQs)
-
A good PCB layout for the HMC540LP3E involves keeping the signal paths short, using a solid ground plane, and minimizing the number of vias. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
-
To optimize power supply decoupling, use a combination of high-frequency and low-frequency capacitors. Place a 100nF capacitor close to the device's power pins, and a 10uF capacitor further away. Ensure that the capacitors are connected to a solid ground plane and that the power supply lines are as short as possible.
-
The HMC540LP3E can operate from -40°C to 85°C, but it's recommended to operate it within a temperature range of 0°C to 70°C for optimal performance and reliability.
-
To troubleshoot common issues, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Verify that the power supply decoupling is adequate and that the device is properly terminated. Use a spectrum analyzer to check for oscillations and ensure that the device is operating within its specified frequency range.
-
Yes, the HMC540LP3E can be used in a non-50 ohm system, but it may require additional impedance matching networks to ensure optimal performance. The device's input and output impedance can be adjusted using external components to match the system's impedance.
Trust Checks
Community Provided
System Verified
Community Approved
HMC540LP3E Overview

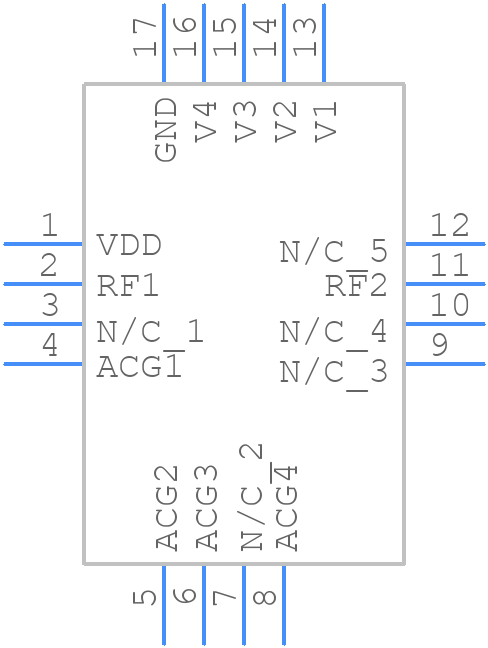

Use the download button to access the HMC540LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC54,
or try a keyword search, such as RF/Microwave Attenuators
