HMC540LP3ETR - Analog Devices

Description: RF Attenuators 1dB ~ 15dB 0 Hz ~ 5.5 GHz 50 Ohms 16-VFQFN Exposed Pad

Download HMC540LP3ETR Model

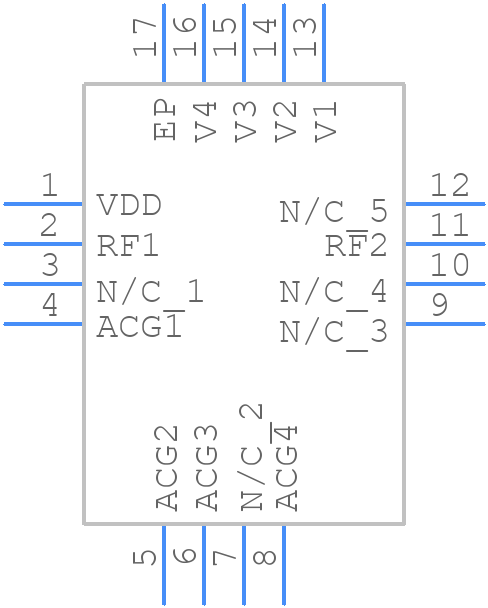

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC540LP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-VFQFN
click to zoom
3D Models
HMC540LP3ETR - Analog Devices  - 3D model - Quad Flat No-Lead - 16-VFQFN
click to zoom

HMC540LP3ETR Details

  • Manufacturer Part Number:

    HMC540LP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    15 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29 dBm

  • Insertion Loss-Max:

    2.6 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    5500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.43

HMC540LP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF capacitors, and the Iset pin is connected to a 10kΩ resistor to set the output current. Also, ensure the input voltage is within the recommended range of 3.3V to 5.5V.
  • The maximum power dissipation of the HMC540LP3ETR is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
  • Check the power supply voltage, ensure proper decoupling, and verify the input signal integrity. Use an oscilloscope to check the output signal and verify it meets the expected specifications.
  • Yes, the HMC540LP3ETR is compatible with lead-free soldering processes, but ensure the soldering temperature does not exceed 260°C to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC540LP3ETR Overview

Use the download button to access the HMC540LP3ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC54, or try a keyword search, such as RF/Microwave Attenuators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
