HMC540SLP3E - Analog Devices

Description: ANALOG DEVICES - HMC540SLP3E - DIGI ATTENUATOR, 0.1-8GHZ, QFN-16

Download HMC540SLP3E Model

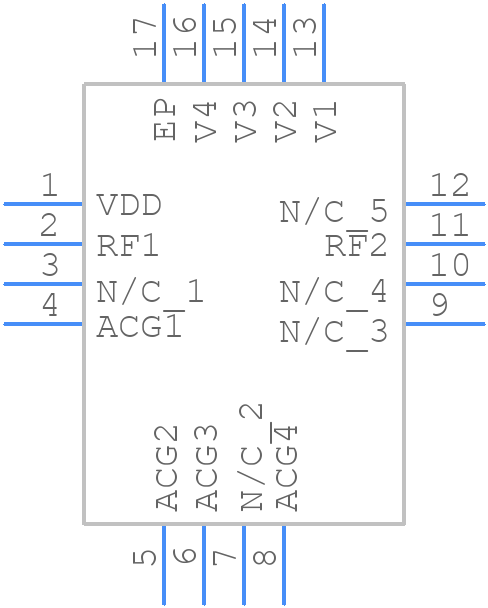

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC540SLP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - EZJ-Z0V650DA
click to zoom
3D Models
HMC540SLP3E - Analog Devices  - 3D model - Quad Flat No-Lead - EZJ-Z0V650DA
click to zoom

HMC540SLP3E Details

  • Manufacturer Part Number:

    HMC540SLP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    15 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.17

HMC540SLP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC540SLP3E requires a single +5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC540SLP3E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • Minimize the noise figure by using a low-noise power supply, keeping the device away from noise sources, and using a high-quality PCB layout with proper grounding and shielding.
  • The recommended input and output impedance for the HMC540SLP3E is 50 ohms. Ensure that the input and output are properly matched to minimize reflections and ensure optimal performance.
