HMC540SLP3ETR - Analog Devices

Description: Attenuators SOI 4Bit DAT - v3 ESD Improved MiM

Download HMC540SLP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

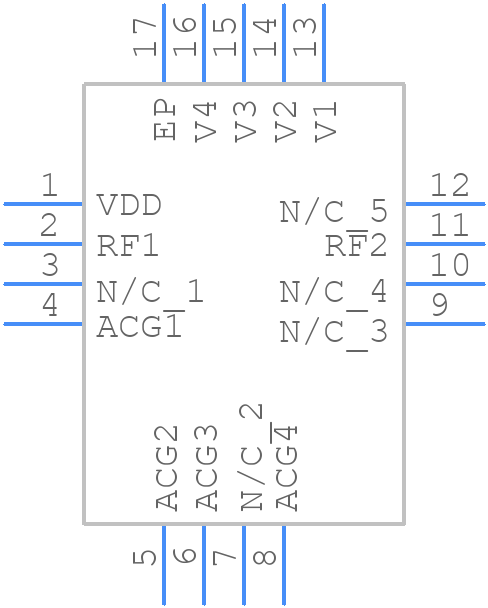

HMC540SLP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC540SLP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Lead 3x3mm -
click to zoom
3D Models
HMC540SLP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - 16 Lead 3x3mm -
click to zoom

HMC540SLP3ETR Details

  • Manufacturer Part Number:

    HMC540SLP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

HMC540SLP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC540SLP3ETR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC540SLP3ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC540SLP3ETR has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures.
  • The recommended input and output impedance for the HMC540SLP3ETR is 50 ohms. Ensure that the input and output signals are properly matched to minimize reflections and ensure optimal performance.
