HMC574AMS8E - Analog Devices

Description: ANALOG DEVICES - HMC574AMS8E - RF SWITCH, SPDT, DC-3GHZ, MSOP-8

Download HMC574AMS8E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

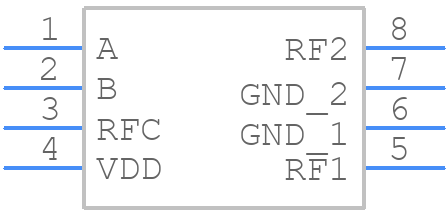

HMC574AMS8E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC574AMS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC574AMS8E
click to zoom
3D Models
HMC574AMS8E - Analog Devices - 3D model - Small Outline Packages - HMC574AMS8E
click to zoom

HMC574AMS8E Details

  • Manufacturer Part Number:

    HMC574AMS8E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    34 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    39 dBm

  • Insertion Loss-Max:

    0.8 dB

  • Isolation-Min:

    16 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.04

HMC574AMS8E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The HMC574AMS8E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The VCC pin should be connected to a clean 5V power supply, and the VEE pin should be connected to a quiet ground.
  • The HMC574AMS8E can operate up to 6 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. In general, the device can operate up to 4 GHz with minimal degradation in performance.
  • The HMC574AMS8E has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and buffered to prevent signal degradation. Use a level translator if the microcontroller or FPGA operates at a different voltage level.
  • The typical current consumption of the HMC574AMS8E is around 350mA, but this can vary depending on the frequency of operation, output power, and other factors. Ensure the power supply can provide sufficient current to the device.
