HMC574AMS8ETR - Analog Devices

Description: RF Switch ICs 5 Watt SPDT T/R Switch SMT, DC - 3 GHz

Download HMC574AMS8ETR Model
Schematic

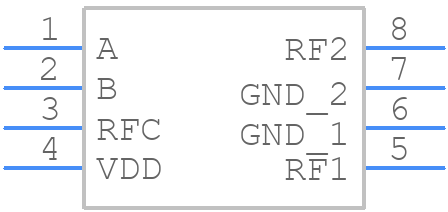

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC574AMS8ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC574AMS8E
click to zoom
3D Models
HMC574AMS8ETR - Analog Devices  - 3D model - Small Outline Packages - HMC574AMS8E
click to zoom

HMC574AMS8ETR Details

  • Manufacturer Part Number:

    HMC574AMS8ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    34 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    39 dBm

  • Insertion Loss-Max:

    0.8 dB

  • Isolation-Min:

    16 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.04

HMC574AMS8ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC574AMS8ETR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors to minimize noise and ripple.
  • The HMC574AMS8ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC574AMS8ETR has a parallel interface. Use a microcontroller or FPGA with a parallel interface, and ensure the interface signals are properly terminated and matched to the HMC574AMS8ETR's input impedance.
  • The typical current consumption of the HMC574AMS8ETR is around 350mA, but this can vary depending on the operating frequency, temperature, and other factors.
