HMC574MS8E - Analog Devices

Description: ANALOG DEVICES - HMC574MS8E - RF Switch IC, 5 Watt T/R Switch, DC to 3 GHz, 3 V to 8 V, MSOP-8

Download HMC574MS8E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

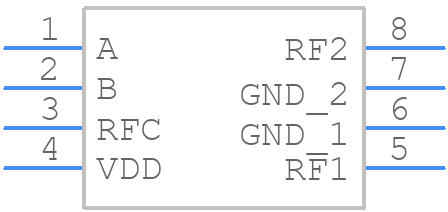

HMC574MS8E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC574MS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC574
click to zoom
3D Models
HMC574MS8E - Analog Devices - 3D model - Small Outline Packages - HMC574
click to zoom

HMC574MS8E Details

  • Manufacturer Part Number:

    HMC574MS8E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    36 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    39 dBm

  • Insertion Loss-Max:

    0.8 dB

  • Isolation-Min:

    16 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.12 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.04

HMC574MS8E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC574MS8E requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors to minimize noise and ripple.
  • The HMC574MS8E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout and design.
  • The HMC574MS8E has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and matched to the device's input impedance.
  • The typical current consumption of the HMC574MS8E is around 350mA, but this can vary depending on the operating frequency, temperature, and other factors.
