HMC575LP4E - Analog Devices

Description: Analog Devices Hittite HMC575LP4E, RF Amplifier Broadband 2-channel 9 GHz, 24-Pin SMT

Download HMC575LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

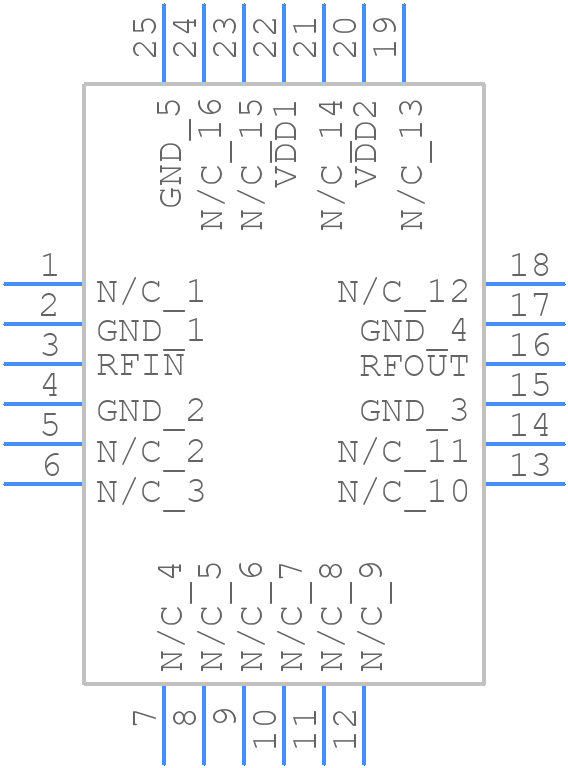

HMC575LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC575LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin QFN
click to zoom
3D Models
HMC575LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24-Pin QFN
click to zoom

HMC575LP4E Details

  • Manufacturer Part Number:

    HMC575LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    4500 MHz

  • Operating Frequency-Min:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC575LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC575LP4E requires a single positive supply voltage (Vcc) between 3.3V and 5V. Ensure the voltage regulator is stable and decoupled with capacitors to minimize noise.
  • The HMC575LP4E can handle up to 30 dBm of input power. Exceeding this limit may cause damage to the device.
  • The HMC575LP4E has a serial interface (SPI) for control and monitoring. Use a microcontroller or FPGA with a compatible SPI interface to communicate with the device.
  • The typical settling time of the HMC575LP4E is around 100 ns, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC575LP4E Overview

Use the download button to access the HMC575LP4E schematic symbol, PCB footprint, and 3D model.
