HMC582LP5 - Analog Devices

Description: VCO with Fo/2 & Divide-by-4 SMT, 11.1-12.4 GHz

Download HMC582LP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

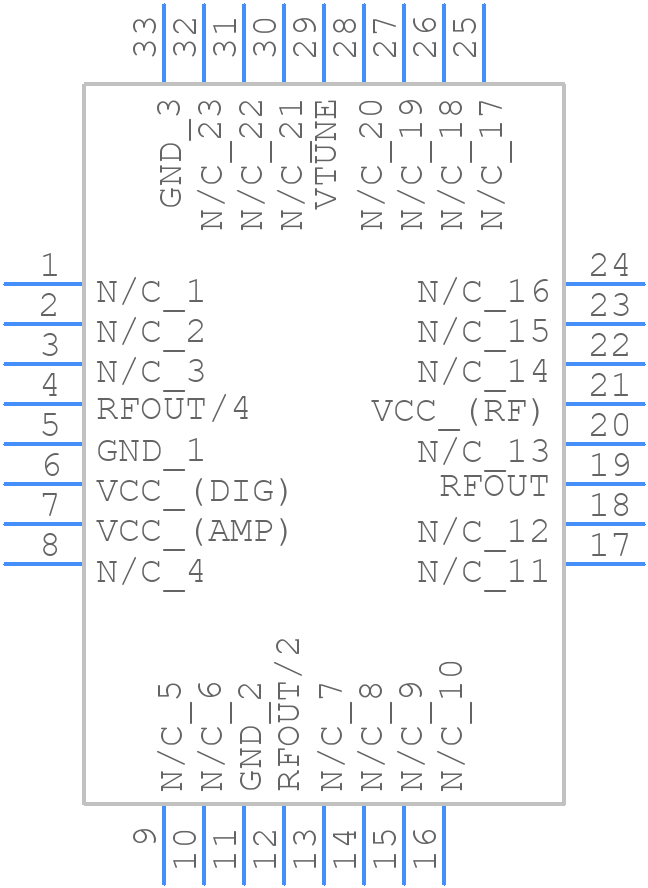

HMC582LP5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC582LP5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC584
click to zoom

HMC582LP5 Details

  • Manufacturer Part Number:

    HMC582LP5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    12 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e0

  • Modulation Sensitivity:

    30 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    12400 MHz

  • Operating Frequency-Min:

    11100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    5 dBm

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    390 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC582LP5 Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC582LP5 involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the device and the antenna. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • Calibrating the HMC582LP5 involves applying a known magnetic field to the device and adjusting the internal registers to compensate for any offsets and scaling errors. The calibration process typically involves rotating the device in a known magnetic field, such as the Earth's magnetic field, and recording the output values. The calibration data can then be used to correct the device's output in the application software.
  • The HMC582LP5 is rated for operation from -40°C to +85°C. However, the device's accuracy and sensitivity may degrade at extreme temperatures. It's essential to consider the operating temperature range when designing the system and to ensure that the device is properly compensated for temperature effects.
  • The HMC582LP5 communicates with a microcontroller through a standard I2C or SPI interface. The device requires a 3.3V power supply, and the interface signals should be level-shifted if the microcontroller operates at a different voltage. The datasheet provides detailed information on the interface timing and protocol.
  • The typical current consumption of the HMC582LP5 is around 1.5mA, but this can vary depending on the operating mode and frequency. The device has a low-power mode that can reduce the current consumption to around 10uA. It's essential to consider the power consumption when designing the system and to ensure that the power supply can provide the required current.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC582LP5 Overview

Use the download button to access the HMC582LP5 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC58, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
