HMC582LP5E - Analog Devices

Description: Oscillator VCO 2780MHz to 3100MHz/ 5550MHz to 6200MHz/ 11100MHz to 12400MHz 5V 32-Pin QFN EP SMD T/R

Download HMC582LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

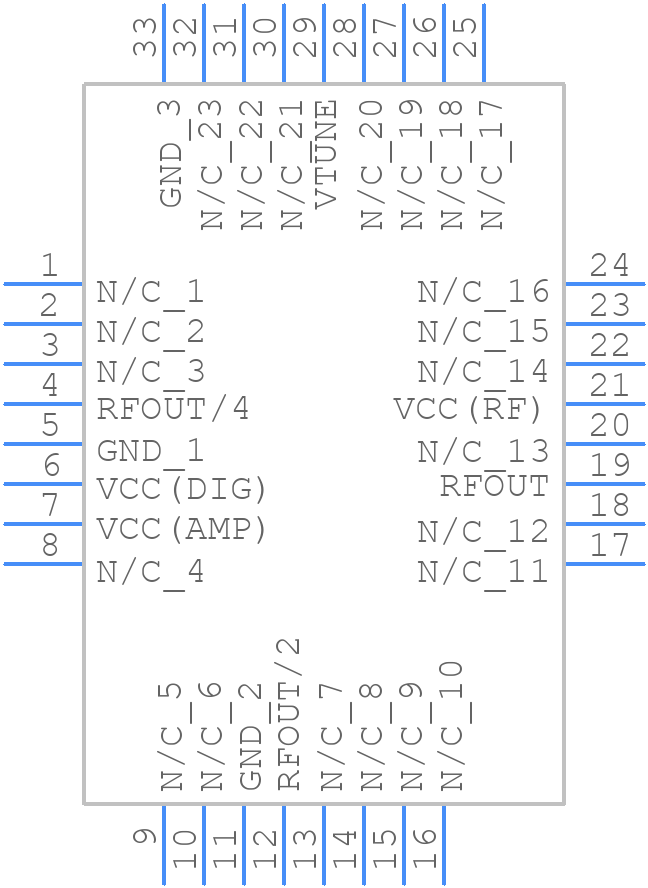

HMC582LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC582LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 4.9*5.1*1
click to zoom
3D Models
HMC582LP5E - Analog Devices - 3D model - Quad Flat No-Lead - 4.9*5.1*1
click to zoom

HMC582LP5E Details

  • Manufacturer Part Number:

    HMC582LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    12 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    30 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    12400 MHz

  • Operating Frequency-Min:

    11100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    5 dBm

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    390 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC582LP5E Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the HMC582LP5E can be found in the 'Evaluation Board Layout' section of the datasheet. It is essential to follow the recommended layout to ensure optimal performance and minimize noise.
  • The HMC582LP5E requires calibration to compensate for internal biases and scaling factors. Calibration involves applying a known magnetic field and measuring the output. The calibration process is described in the 'Calibration' section of the datasheet.
  • The HMC582LP5E is rated for operation from -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.
  • The HMC582LP5E communicates via a standard I²C interface. The device requires a 3.3V or 5V power supply, and the I²C clock frequency should be between 100 kHz and 400 kHz. The datasheet provides detailed information on the I²C interface and register maps.
  • The HMC582LP5E can measure magnetic fields up to ±8 Gauss (800 μT) in the x, y, and z axes. The device can also measure fields up to ±16 Gauss (1600 μT) with reduced accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC582LP5E Overview

Use the download button to access the HMC582LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC58, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
