HMC582LP5ETR - Analog Devices

Description: VCO with Fo/2 & Divide-by-4 SMT, 11.1-12.4 GHz

Download HMC582LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

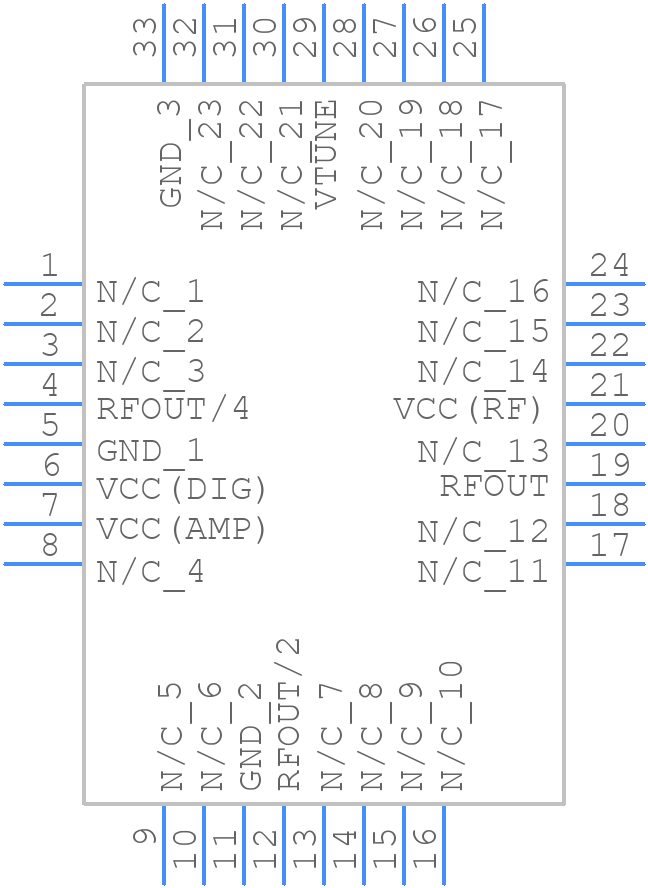

Symbol
HMC582LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC582LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.5
click to zoom

HMC582LP5ETR Details

  • Manufacturer Part Number:

    HMC582LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TAPE AND REEL

  • Control Voltage-Max:

    12 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    30 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    12400 MHz

  • Operating Frequency-Min:

    11100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    5 dBm

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    390 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC582LP5ETR Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for optimal performance. Keep the magnetometer away from high-current carrying traces, and use a solid ground plane to reduce noise. Use a 4-layer PCB with a dedicated layer for the magnetometer's analog signals. Keep the magnetometer's pins as short as possible and use a low-ESR capacitor for decoupling.
  • Calibration is required to remove the hard-iron and soft-iron effects. Perform a hard-iron calibration by rotating the magnetometer in a 3D sphere and recording the maximum and minimum values for each axis. Then, perform a soft-iron calibration by applying a known magnetic field and recording the readings. Use these values to calculate the calibration coefficients.
  • The HMC582LP5ETR is rated for operation from -40°C to +125°C. However, the accuracy and sensitivity of the magnetometer may degrade at extreme temperatures. It's recommended to operate the device within the -20°C to +85°C range for optimal performance.
  • The HMC582LP5ETR communicates via a SPI interface. Connect the SCLK, SDI, and SDO pins to the microcontroller's SPI pins. Use a 3.3V or 5V power supply, and ensure the microcontroller's SPI clock frequency is within the recommended range of 100 kHz to 10 MHz.
  • The typical current consumption of the HMC582LP5ETR is around 12 mA at 3.3V and 20 mA at 5V. However, this can vary depending on the operating frequency, temperature, and other factors. Refer to the datasheet for more information on power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC582LP5ETR Overview

Use the download button to access the HMC582LP5ETR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC58, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
