HMC583LP5 - Analog Devices

Description: MMIC VCO w/ HALF FREQUENCY OUTPUT ,VCO SMT with Fo/2 & Divide-by-4, 11.5 - 12.8 GHz

Download HMC583LP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

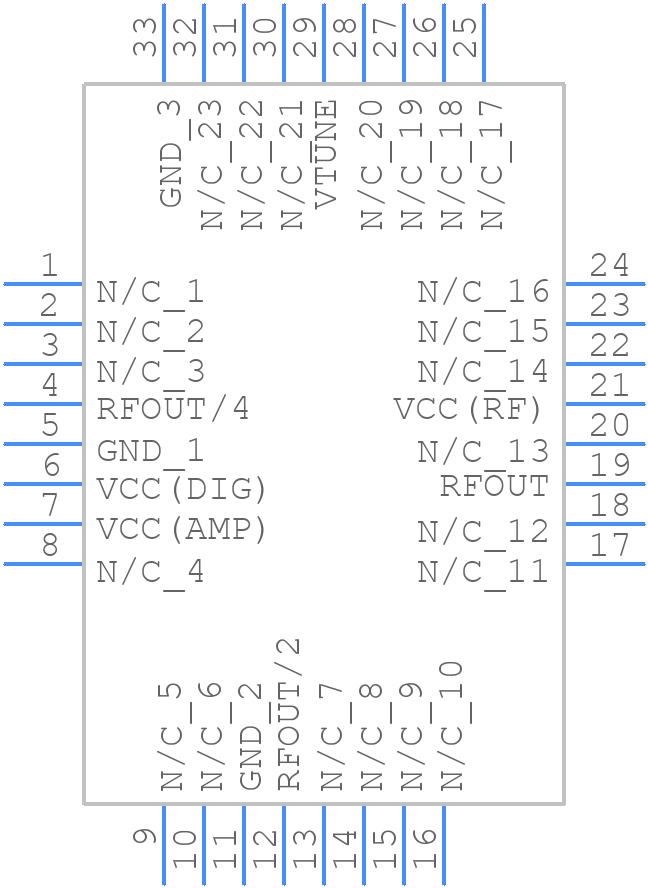

HMC583LP5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC583LP5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.5-1
click to zoom

HMC583LP5 Details

  • Manufacturer Part Number:

    HMC583LP5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    12 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e0

  • Modulation Sensitivity:

    20 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    12800 MHz

  • Operating Frequency-Min:

    11500 MHz

  • Operating Frequency-Nom:

    12800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    7 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    390 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC583LP5 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for the HMC583LP5 involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device's pins. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing signals under the device.
  • Calibration of the HMC583LP5 involves applying a known magnetic field to the device and adjusting the internal registers to compensate for any offsets and scaling errors. The calibration process typically involves rotating the device in a known magnetic field and measuring the output, then adjusting the registers to achieve the desired accuracy.
  • The HMC583LP5 is rated for operation from -40°C to +125°C, but the device's accuracy and sensitivity may degrade at extreme temperatures. It's recommended to operate the device within the -20°C to +85°C range for optimal performance.
  • The HMC583LP5 is designed to operate in environments with moderate vibration, but extreme vibration can affect the device's accuracy and reliability. It's recommended to use mechanical damping or isolation to minimize the effects of vibration on the device.
  • The HMC583LP5 communicates with a microcontroller through a standard I2C or SPI interface. The device requires a 3.3V or 5V power supply and a clock signal, and the microcontroller can read the device's output registers to obtain the measured magnetic field data.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC583LP5 Overview

Use the download button to access the HMC583LP5 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC58, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
