HMC583LP5ETR - Analog Devices

Description: RF IC VCO General Purpose 11.5GHz ~ 12.8GHz Triple Outputs (Divide by 2, Divide by 4, Standard) 32-QFN (5x5) , 350 mA , - 40 °C to +85 °C

Download HMC583LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

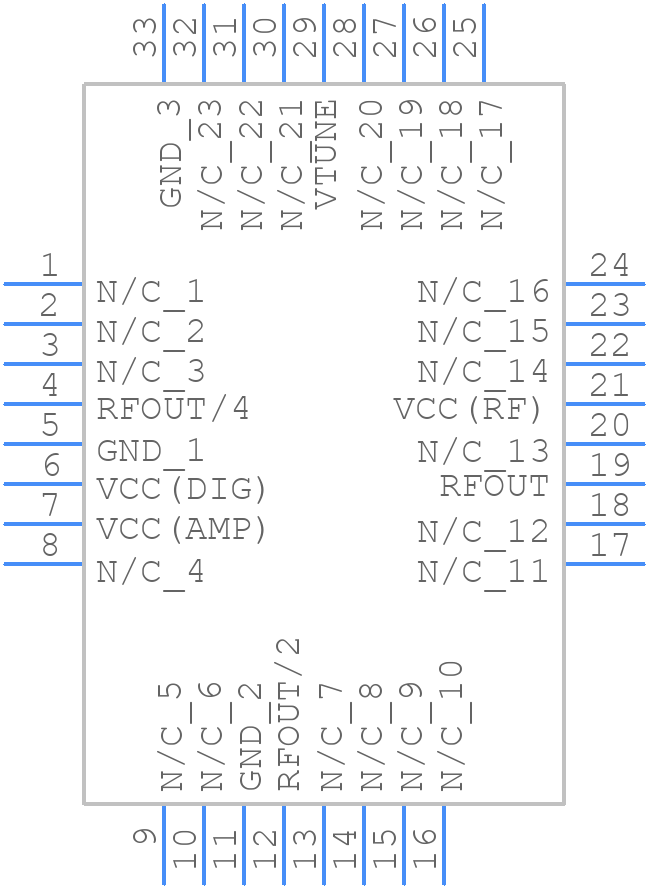

HMC583LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC583LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.2
click to zoom

HMC583LP5ETR Details

  • Manufacturer Part Number:

    HMC583LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TAPE AND REEL

  • Control Voltage-Max:

    12 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    20 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    12800 MHz

  • Operating Frequency-Min:

    11500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    7 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    390 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC583LP5ETR Frequently Asked Questions (FAQs)

  • A recommended PCB layout is to keep the magnetometer away from high-current carrying traces, and to use a solid ground plane underneath the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the magnetometer's analog signals to minimize noise and interference.
  • Calibration involves applying a known magnetic field to the device and adjusting the offset and gain registers to achieve accurate readings. The datasheet provides a calibration procedure, and Analog Devices also provides a calibration tool and software to simplify the process.
  • The maximum operating temperature range for the HMC583LP5ETR is -40°C to +125°C, but the device's accuracy and sensitivity may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range of -20°C to +85°C for optimal performance.
  • Noise and interference can be handled by using a low-pass filter, such as a RC filter, to filter out high-frequency noise. Additionally, using a shielded cable and keeping the magnetometer away from sources of electromagnetic interference (EMI) can help minimize noise and interference.
  • A recommended power supply decoupling is to use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the device's power pins. This helps to filter out noise and ripple in the power supply.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC583LP5ETR Overview

Use the download button to access the HMC583LP5ETR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC58, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
