HMC584LP5 - Analog Devices

Description: VCO SMT with Fo/2 & Divide-by-4, 12.5 - 13.9 GHz, Low noise MMIC VCO w/Half Frequency

Download HMC584LP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

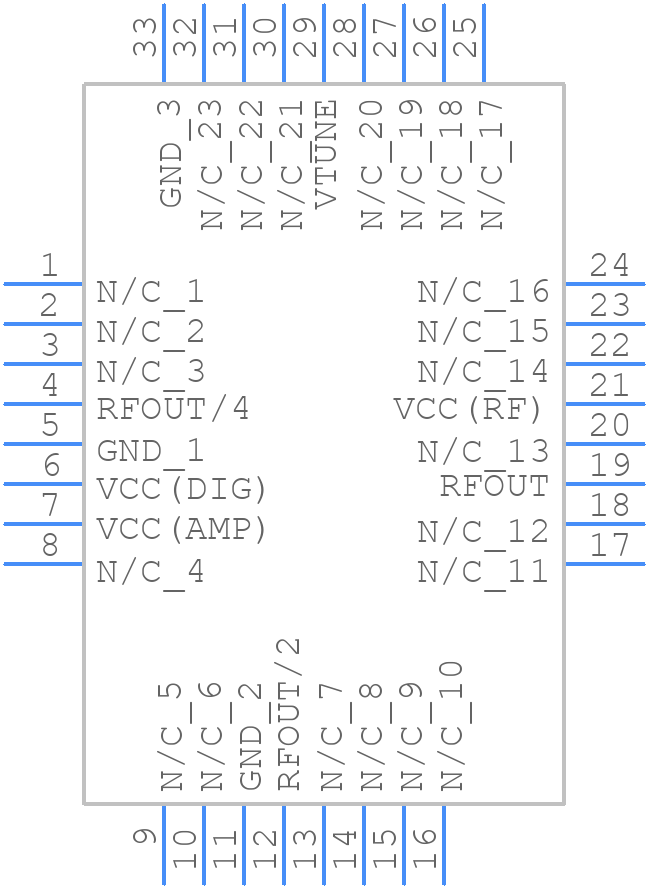

Symbol
HMC584LP5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC584LP5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.55
click to zoom

HMC584LP5 Details

  • Manufacturer Part Number:

    HMC584LP5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, LEADLESS, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    12 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e0

  • Modulation Sensitivity:

    20 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    13900 MHz

  • Operating Frequency-Min:

    12500 MHz

  • Operating Frequency-Nom:

    13900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    7 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    380 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC584LP5 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the HMC584LP5 involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the device and the antenna. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes to ensure optimal performance.
  • Calibrating the HMC584LP5 involves compensating for the device's internal biases and scaling factors. This can be done using a calibration procedure that involves rotating the device in a known magnetic field, such as the Earth's magnetic field, and measuring the output values. The calibration coefficients can then be calculated and stored in the device's registers or in an external microcontroller.
  • The HMC584LP5 is rated for operation from -40°C to +85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the accuracy of the measurements may be affected. It's recommended to operate the device within the specified temperature range to ensure optimal performance.
  • The HMC584LP5 is a sensitive device that can be affected by mechanical vibrations. While it's designed to operate in a variety of environments, high-vibration applications may require additional considerations, such as mechanical damping or vibration isolation. It's recommended to evaluate the device's performance in the specific application environment to ensure reliable operation.
  • The HMC584LP5 communicates with a microcontroller using a standard I2C or SPI interface. The device requires a 3.3V or 5V power supply, and the interface signals should be level-shifted accordingly. The microcontroller should also provide a clock signal for the I2C or SPI interface. It's recommended to follow the interface guidelines provided in the datasheet and application notes to ensure reliable communication.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC584LP5 Overview

Use the download button to access the HMC584LP5 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC58, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
