HMC586LC4BTR-R5 - Analog Devices

Description: Oscillator VCO 4000MHz to 8000MHz 5V 24-Pin CLLCC EP SMD T/R

Download HMC586LC4BTR-R5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

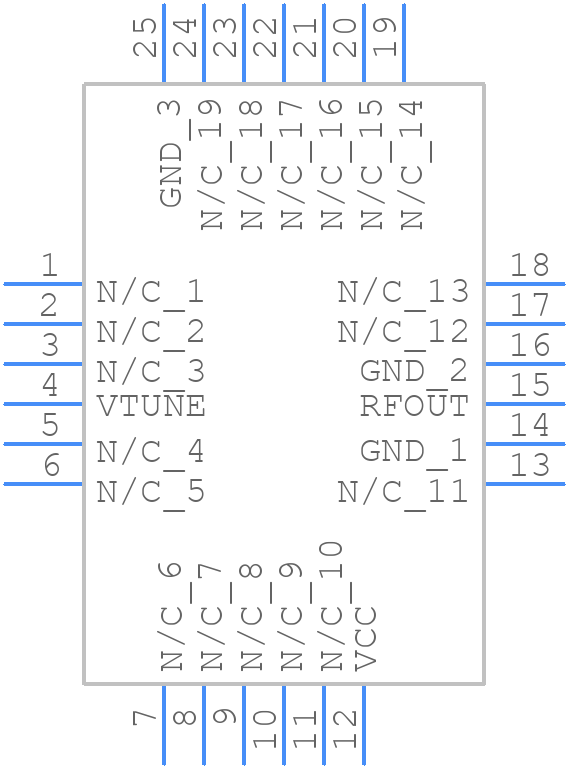

Symbol
HMC586LC4BTR-R5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC586LC4BTR-R5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H733XXXX
click to zoom
3D Models
HMC586LC4BTR-R5 - Analog Devices - 3D model - Quad Flat No-Lead - H733XXXX
click to zoom

HMC586LC4BTR-R5 Details

  • Manufacturer Part Number:

    HMC586LC4BTR-R5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEADLESS, QFN, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    HE-24-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    18 V

  • Modulation Sensitivity:

    40 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Offset Frequency:

    10 kHz

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    5 dBm

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Phase Noise:

    -75 dBc/Hz

  • Physical Dimension:

    4.0mm x 4.0mm x 1.2mm

  • Supply Current-Max:

    75 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

HMC586LC4BTR-R5 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance can be found in the HMC586LC4BTR-R5 evaluation board documentation, which provides a reference design for layout and component placement. Additionally, Analog Devices provides a PCB layout guide for RF and microwave components that can be applied to the HMC586LC4BTR-R5.
  • The HMC586LC4BTR-R5 has a maximum junction temperature of 150°C. To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines. The device's thermal resistance (θJA) is specified in the datasheet, which can be used to estimate the junction temperature.
  • The recommended power-up sequence for the HMC586LC4BTR-R5 is to apply the positive supply voltage (VCC) before the negative supply voltage (VEE). This ensures that the internal biasing circuitry is properly initialized. Additionally, it is recommended to ramp up the supply voltages slowly to prevent damage to the device.
  • To troubleshoot common issues with the HMC586LC4BTR-R5, start by verifying the power supply voltages and ensuring that they are within the specified range. Check the PCB layout for any signs of resonance or oscillation, and ensure that the device is properly decoupled. Use a spectrum analyzer or oscilloscope to measure the output signal and identify any signs of instability. Consult the datasheet and application notes for troubleshooting guides and tips.
  • The HMC586LC4BTR-R5 is a sensitive device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Follow proper ESD handling procedures, and consider using ESD protection devices such as TVS diodes or ESD arrays on the PCB.
