HMC591LP5E - Analog Devices

Description: RF Amplifier 2 Watt pow amp SMT, 6.0 - 9.5 GHz

Download HMC591LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

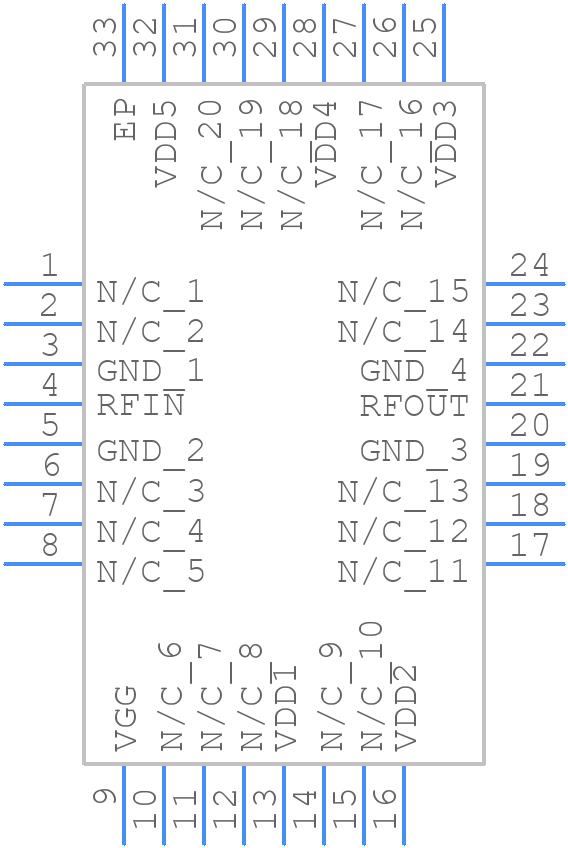

HMC591LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC591LP5E
click to zoom
3D Models
HMC591LP5E - Analog Devices  - 3D model - Quad Flat No-Lead - HMC591LP5E
click to zoom

HMC591LP5E Details

  • Manufacturer Part Number:

    HMC591LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    9500 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    7 V

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC591LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The HMC591LP5E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA to 20mA.
  • The HMC591LP5E can operate up to 6 GHz, but the optimal frequency range is between 100 MHz to 3 GHz. Above 3 GHz, the gain and noise figure may degrade.
  • The HMC591LP5E has a analog output that can be interfaced with an ADC in a microcontroller or FPGA. Use a buffer amplifier or a voltage follower to condition the output signal if necessary.
  • The typical noise figure of the HMC591LP5E is around 2.5 dB at 2 GHz, but it can vary depending on the frequency, bias current, and operating conditions.
