HMC596LP4E - Analog Devices

Description: ANALOG DEVICES - HMC596LP4E - RF SWITCH MATRIX, 4X2, 0.2-3GHZ, QFN-24

Download HMC596LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

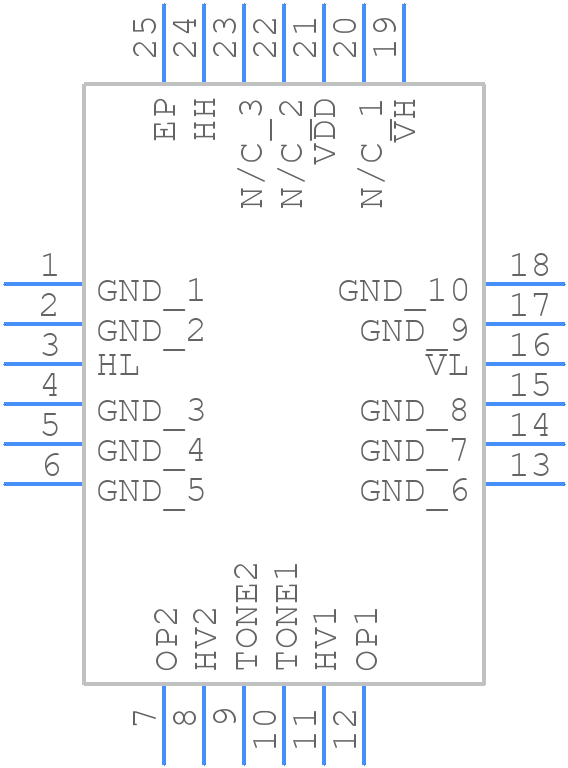

HMC596LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC596LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC596LP4E
click to zoom
3D Models
HMC596LP4E - Analog Devices - 3D model - Quad Flat No-Lead - HMC596LP4E
click to zoom

HMC596LP4E Details

  • Manufacturer Part Number:

    HMC596LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    22 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23 dBm

  • Insertion Loss-Max:

    9 dB

  • Isolation-Min:

    37 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DPDT

  • Supply Current-Max:

    0.4 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.07

HMC596LP4E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC596LP4E involves keeping the signal paths short, using a solid ground plane, and minimizing the use of vias. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to place the device near the edge of the board to reduce noise and radiation.
  • To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. The device requires a single supply voltage of 3.3V or 5V, and the VCC pin should be decoupled with a 0.1uF capacitor to ground. Additionally, the bias pins (VBIAS and VBIAS2) should be connected to a stable voltage source.
  • The HMC596LP4E is designed to operate up to 6 GHz, but the actual operating frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information on frequency planning and optimization.
  • To troubleshoot common issues with the HMC596LP4E, start by checking the PCB layout and ensuring that the device is properly biased and decoupled. Check for any signs of oscillation or instability, such as excessive current draw or heat generation. Consult the datasheet and application notes for troubleshooting guides and tips.
  • The HMC596LP4E is a high-power device that requires proper thermal management to ensure reliable operation. A recommended strategy is to use a heat sink or thermal pad to dissipate heat, and to ensure good airflow around the device. The maximum junction temperature should not exceed 150°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC596LP4E Overview

Use the download button to access the HMC596LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC59, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
