HMC596LP4ETR - Analog Devices

Description: RF Switch ICs CMOS 4x2 Switch Matrix SMT, 0.2 - 3.0

Download HMC596LP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

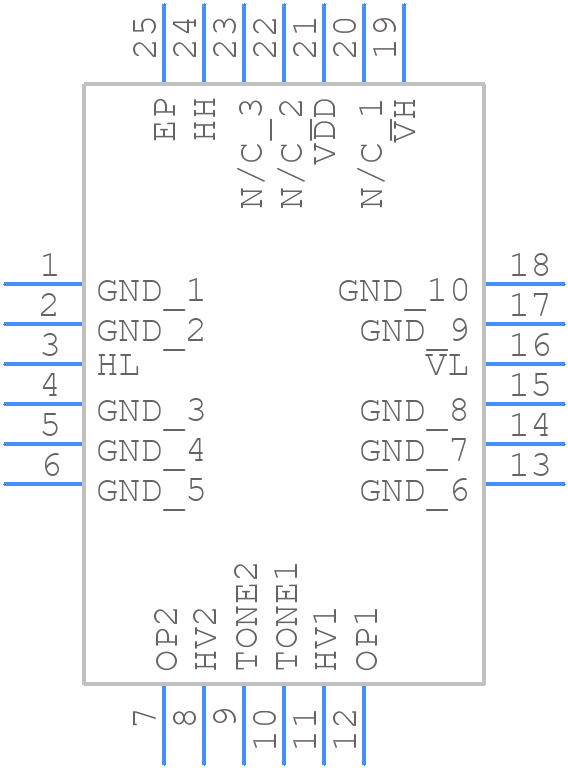

HMC596LP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC596LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qefn 25
click to zoom
3D Models
HMC596LP4ETR - Analog Devices - 3D model - Quad Flat No-Lead - qefn 25
click to zoom

HMC596LP4ETR Details

  • Manufacturer Part Number:

    HMC596LP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    22 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23 dBm

  • Insertion Loss-Max:

    9 dB

  • Isolation-Min:

    37 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • On Time-Nom:

    0.0065 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DPDT

  • Supply Current-Max:

    0.4 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • VSWR-Max:

    1.5
