HMC601LP4 - Analog Devices

Description: RF Detector 75dB Log Det/Controller , 10 - 4000 MHz

Download HMC601LP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

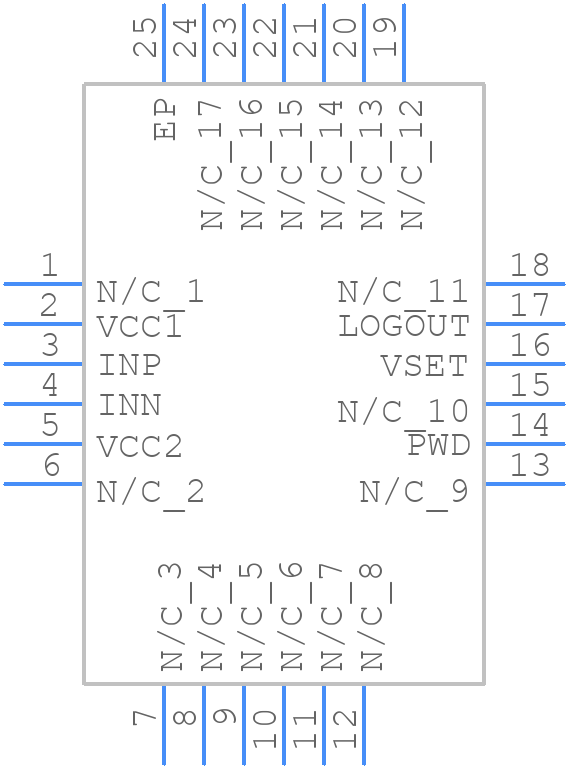

HMC601LP4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC601LP4 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFN Exposed Pad
click to zoom
3D Models
HMC601LP4 - Analog Devices - 3D model - Quad Flat No-Lead - 24-VFQFN Exposed Pad
click to zoom

HMC601LP4 Details

  • Manufacturer Part Number:

    HMC601LP4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-16-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e0

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF FRONT END CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

HMC601LP4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC601LP4 requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC601LP4 can achieve data rates up to 1.5 Gbps, but this may require careful PCB design and signal integrity analysis to minimize signal degradation.
  • Use a high-speed oscilloscope to measure signal integrity, and a spectrum analyzer to measure power supply noise. Check the PCB layout and decoupling capacitors for any issues.
  • The HMC601LP4 is not specifically designed for radiation-hardened applications. For such applications, consider using a radiation-hardened equivalent or consulting with Analog Devices Inc for custom solutions.
