HMC601LP4TR footprint, schematic symbol and 3D model by Analog Devices

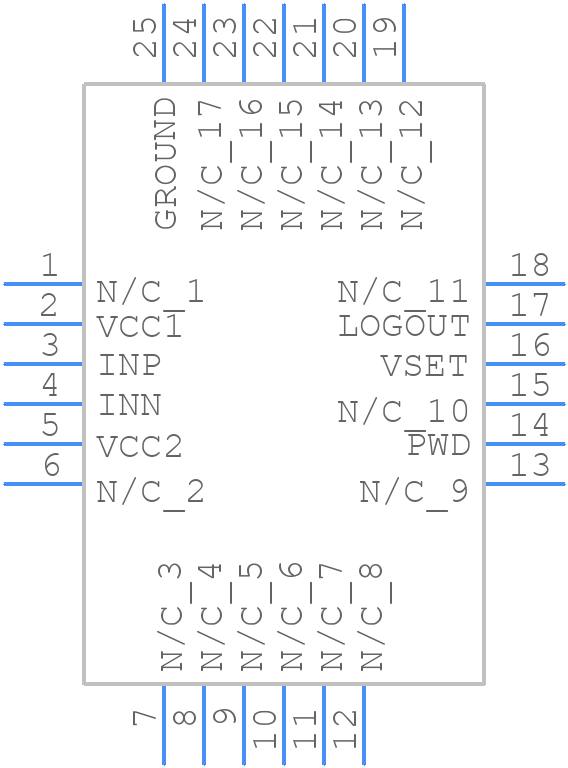

Symbol

click to zoom

PCB Footprints

HMC601LP4TR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC601LP4TR
Part Number HMC601LP4TR
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 8:05 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC601LP4TR Details

Manufacturer Part Number:
HMC601LP4TR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
Package Description:
PLASTIC, SMT-24
Pin Count:
24
Manufacturer Package Code:
HCP-16-1
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
JESD-30 Code:
S-PQCC-N24
Length:
4 mm
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method:
TR
Seated Height-Max:
1 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Telecom IC Type:
RF FRONT END CIRCUIT
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
4 mm

HMC601LP4TR Frequently Asked Questions (FAQs)

A good PCB layout for the HMC601LP4TR involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the use of vias and thermal reliefs. Additionally, it's recommended to use a low-impedance path for the power supply and to decouple the power supply pins with capacitors.
To ensure proper biasing, the HMC601LP4TR requires a single 5V power supply, and the input pins should be biased to a common-mode voltage of 2.5V. Additionally, the output pins should be terminated with a 50Ω load to ensure maximum output swing.
The HMC601LP4TR is specified to operate up to 1.5 GHz, but it can be used at higher frequencies with some degradation in performance. However, it's recommended to consult with Analog Devices Inc. for specific guidance on using the device at frequencies above 1.5 GHz.
The HMC601LP4TR has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing power consumption.
The HMC601LP4TR has an ESD rating of 1 kV human body model (HBM) and 250 V machine model (MM). To ensure reliable operation, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HMC601LP4TR Overview

Use the download button to access the HMC601LP4TR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC60, or try a keyword search, such as Cellular Telephone Circuits
