HMC602LP4ETR - Analog Devices

Description: RF Detector 70 dB, Log Det/Controller , 1 - 8000 MHz

Download HMC602LP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

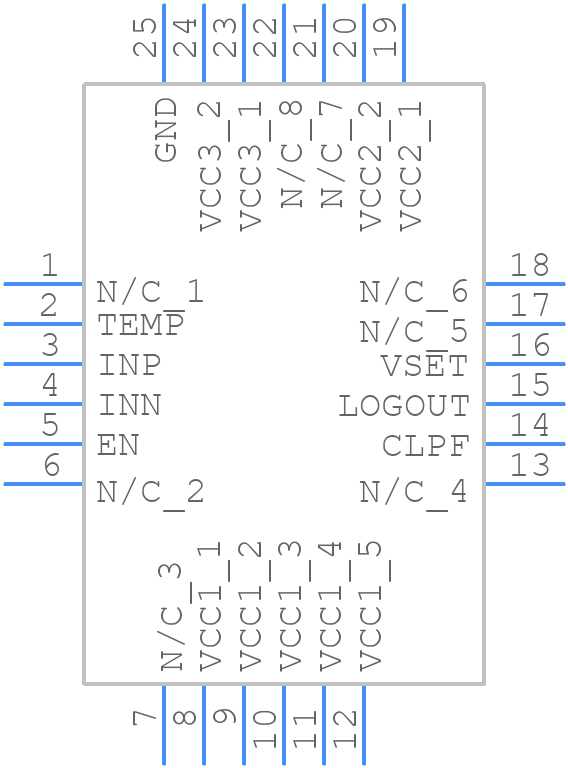

Symbol
HMC602LP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC602LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Lead 4x4 mm SMT-1
click to zoom
3D Models
HMC602LP4ETR - Analog Devices - 3D model - Quad Flat No-Lead - 24 Lead 4x4 mm SMT-1
click to zoom

HMC602LP4ETR Details

  • Manufacturer Part Number:

    HMC602LP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    800 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    NEGATIVE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    THRESHOLD DETECTOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC602LP4ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC602LP4ETR requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC602LP4ETR can support data rates up to 10.3125 Gbps, but the actual data rate achievable depends on the specific application and system design.
  • Use a high-speed oscilloscope to measure the signal quality and jitter. Check the PCB layout, power supply, and termination for any issues. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the HMC602LP4ETR is designed for differential signaling applications. Ensure proper termination and matching of the differential pairs to minimize signal reflections and ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC602LP4ETR Overview

Use the download button to access the HMC602LP4ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC60, or try a keyword search, such as RF/Microwave Detectors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
