HMC617LP3E - Analog Devices

Description: ANALOG DEVICES - HMC617LP3E - RF Amplifier IC, 16 dB Gain / 0.6 dB Noise, 550 MHz to 1.2 GHz, 5 V supply, HVQFN-16

Download HMC617LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

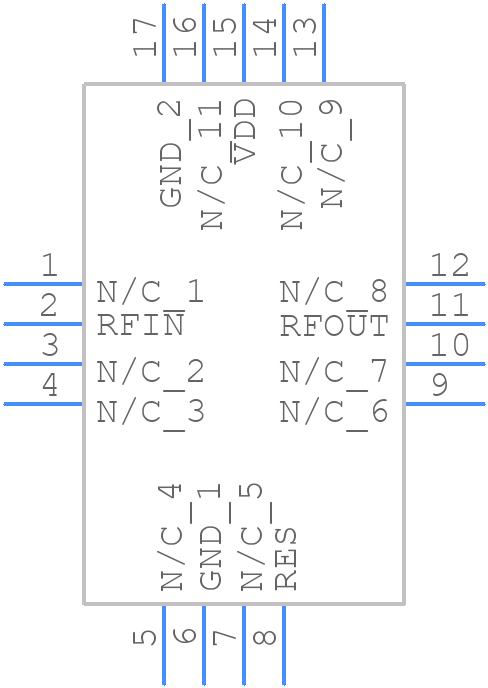

HMC617LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC617LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Lead 3x3mm QFN
click to zoom
3D Models
HMC617LP3E - Analog Devices - 3D model - Quad Flat No-Lead - 16 Lead 3x3mm QFN
click to zoom

HMC617LP3E Details

  • Manufacturer Part Number:

    HMC617LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    SMA

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    11 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1200 MHz

  • Operating Frequency-Min:

    550 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    NARROW BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC617LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC617LP3E requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC617LP3E can handle input powers up to +20 dBm. However, it's recommended to operate at a maximum input power of +15 dBm to ensure optimal performance and prevent damage to the device.
  • The HMC617LP3E has a wideband response, but it can be optimized for a specific frequency band by adjusting the external matching network. Use a network analyzer to optimize the matching network for the desired frequency band.
  • The typical current consumption of the HMC617LP3E is 45mA at 3.3V and 55mA at 5V. However, this can vary depending on the operating frequency and input power level.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC617LP3E Overview

Use the download button to access the HMC617LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC61, or try a keyword search, such as RF/Microwave Amplifiers
