- Stock & Prices $ Price & Stock for HMC6187LP4E
- Part Number HMC6187LP4E
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HMC6187LP4E
- Released Date Aug 20, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC6187LP4E Details
-
Manufacturer Part Number:
HMC6187LP4E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SMT, 24 PIN
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-24-2
-
Country Of Origin:
Malaysia
-
ECCN Code:
3A001.B.2.D
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
HMC6187LP4E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
-
The HMC6187LP4E requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
-
The HMC6187LP4E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
-
The HMC6187LP4E has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and that the clock and data signals are synchronized.
-
The typical current consumption of the HMC6187LP4E is around 350mA, but this can vary depending on the specific application and operating conditions.
Trust Checks
Community Provided
System Verified
Community Approved
HMC6187LP4E Overview

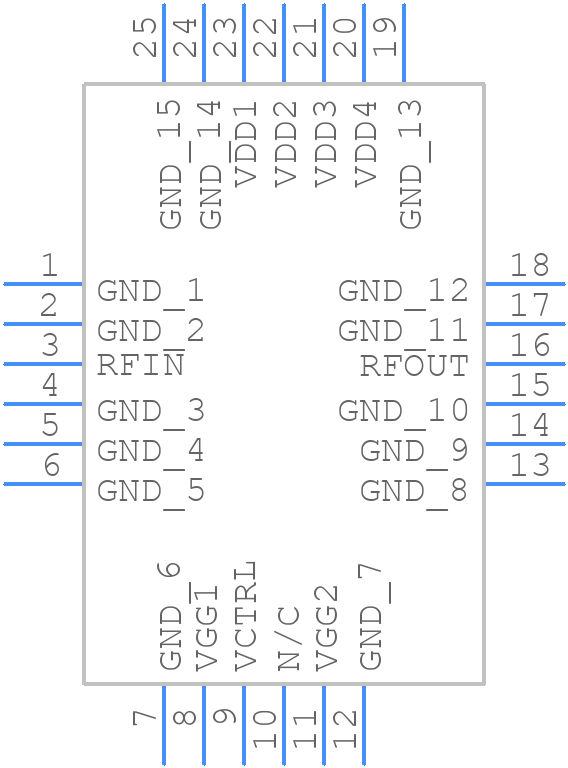

Use the download button to access the HMC6187LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC61,
or try a keyword search, such as RF/Microwave Amplifiers
