HMC624ACPSZ-EP-PT - Analog Devices

Description: 0.1 GHz to 6.0 GHz, 0.5 dB LSB, 6-Bit, GaAs Digital Attenuator

Download HMC624ACPSZ-EP-PT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

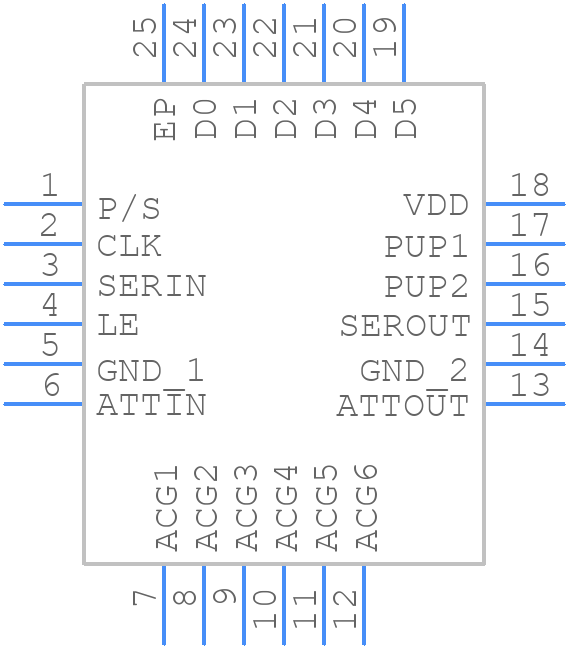

HMC624ACPSZ-EP-PT - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC624ACPSZ-EP-PT - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-16)
click to zoom
3D Models
HMC624ACPSZ-EP-PT - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-16)
click to zoom

HMC624ACPSZ-EP-PT Details

  • Manufacturer Part Number:

    HMC624ACPSZ-EP-PT

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    3.8 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.43

HMC624ACPSZ-EP-PT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC624ACPSZ-EP-PT requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The device also requires a bias current of 10mA to 20mA.
  • The HMC624ACPSZ-EP-PT is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • Common issues include oscillations, noise, and instability. Check the PCB layout, power supply, and biasing. Ensure the device is properly terminated and matched. Use a spectrum analyzer or oscilloscope to debug the issue.
  • The HMC624ACPSZ-EP-PT is sensitive to ESD damage. Use ESD protection devices such as TVS diodes or ESD protection arrays on the input and output pins. Handle the device with ESD-safe materials and follow proper ESD handling procedures.
