HMC624ACPSZ-EP-RL7 - Analog Devices

Description: 0.1 GHz to 6.0 GHz, 0.5 dB LSB, 6-Bit, GaAs Digital Attenuator

Download HMC624ACPSZ-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

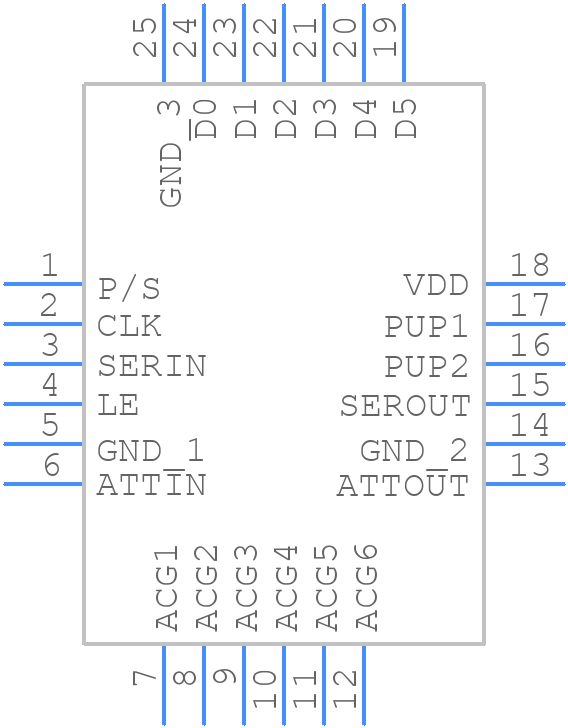

HMC624ACPSZ-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC624ACPSZ-EP-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-16)
click to zoom
3D Models
HMC624ACPSZ-EP-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-16)
click to zoom

HMC624ACPSZ-EP-RL7 Details

  • Manufacturer Part Number:

    HMC624ACPSZ-EP-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    3.8 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.43

HMC624ACPSZ-EP-RL7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance can be found in the application note AN-1369 from Analog Devices, which provides guidelines for designing a PCB layout that minimizes noise and ensures optimal performance of the HMC624ACPSZ-EP-RL7.
  • To ensure the device is properly biased for optimal performance, follow the recommended biasing scheme outlined in the datasheet, and make sure to provide a stable and noise-free power supply to the device. Additionally, ensure that the input and output impedances are matched to the device's recommended values.
  • The HMC624ACPSZ-EP-RL7 is rated for operation from -55°C to +125°C, making it suitable for use in a wide range of applications, including military and aerospace systems.
  • Yes, the HMC624ACPSZ-EP-RL7 is a radiation-hardened device, designed to withstand the effects of ionizing radiation and meet the requirements of MIL-STD-883 and MIL-STD-202.
  • The typical power consumption of the HMC624ACPSZ-EP-RL7 is around 1.2W, depending on the operating frequency and bias conditions. However, this value can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC624ACPSZ-EP-RL7 Overview

Use the download button to access the HMC624ACPSZ-EP-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC62, or try a keyword search, such as RF/Microwave Attenuators
