- Part Number HMC629ALP4E
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - qfen25
- Released Date May 31, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC629ALP4E Details
-
Manufacturer Part Number:
HMC629ALP4E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-24
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-24-2
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2016-07-14
HMC629ALP4E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
-
Use the device's built-in power-down mode, reduce the operating frequency, and optimize the voltage regulator module (VRM) design to minimize power consumption.
-
Use 100nF and 10uF decoupling capacitors, placed as close to the device's power pins as possible, to minimize noise and ensure stable operation.
-
Use a logic analyzer or oscilloscope to monitor the device's signals, and check the device's status registers and error flags to identify the source of the issue.
-
Ensure good airflow, use a heat sink with a thermal interface material, and consider using a thermal interface pad or thermal grease to minimize thermal resistance.
Trust Checks
Community Provided
System Verified
Community Approved
HMC629ALP4E Overview

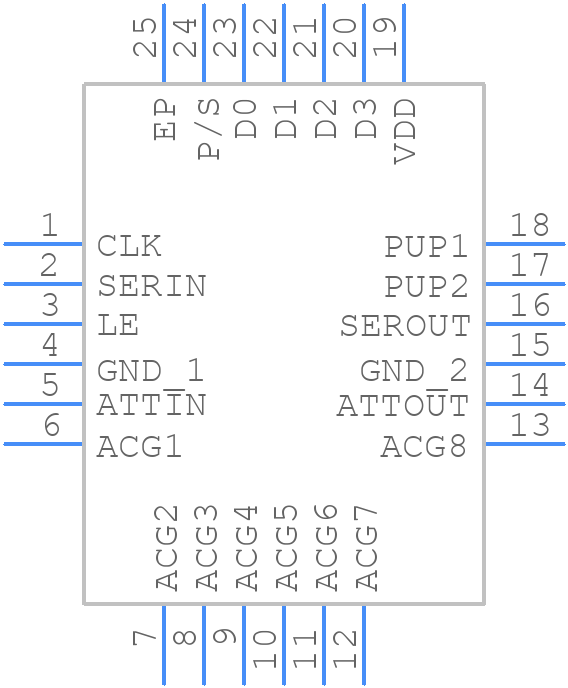

Use the download button to access the HMC629ALP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC62,
or try a keyword search, such as RF/Microwave Attenuators
