HMC629LP4E - Analog Devices

Description: Analog Devices Hittite HMC629LP4E, Variable Attenuator, 45dB, 6GHz, Maximum of 5 V 24-Pin SMT

Download HMC629LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

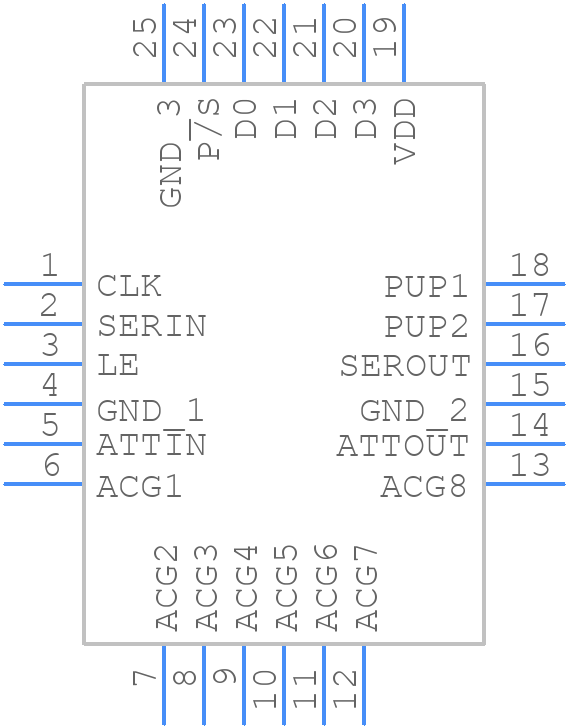

Symbol
HMC629LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC629LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin QFN
click to zoom
3D Models
HMC629LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24-Pin QFN
click to zoom

HMC629LP4E Details

  • Manufacturer Part Number:

    HMC629LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    45 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27.99 dBm

  • Insertion Loss-Max:

    5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.33

HMC629LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC629LP4E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias voltage is 2.5V, which can be achieved using a voltage divider or a dedicated voltage reference.
  • The HMC629LP4E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 4 GHz for optimal performance.
  • To minimize the noise figure, ensure the device is properly biased, and the input and output impedances are matched. Use a low-noise voltage regulator and decouple the power supply with high-quality capacitors. Additionally, use a high-quality PCB material and minimize the length of the signal traces.
  • The recommended input and output impedance for the HMC629LP4E is 50 ohms. Ensure the input and output traces are impedance-matched to minimize reflections and ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC629LP4E Overview

Use the download button to access the HMC629LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC62, or try a keyword search, such as RF/Microwave Attenuators
