HMC630LP3E - Analog Devices

Description: Modulator / Demodulator HBT Vector Modulator SMT, 700 - 1000 MHz

Download HMC630LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

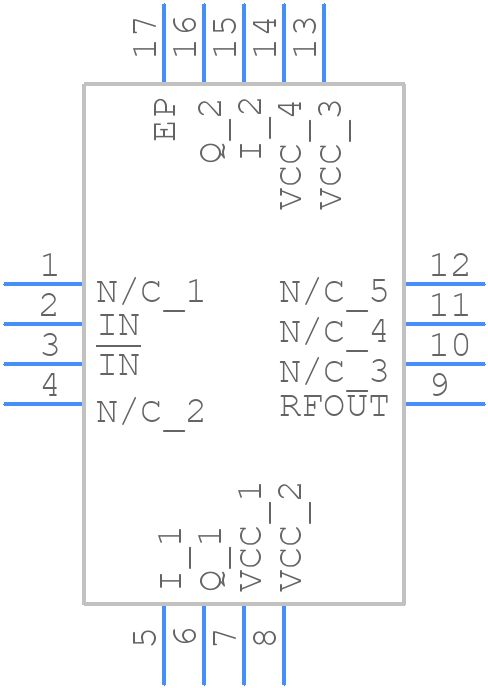

Symbol
HMC630LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC630LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC630LP3E
click to zoom
3D Models
HMC630LP3E - Analog Devices - 3D model - Quad Flat No-Lead - HMC630LP3E
click to zoom

HMC630LP3E Details

  • Manufacturer Part Number:

    HMC630LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, PLASTIC, SMT-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • JESD-609 Code:

    e3

  • Modulation Technique:

    VECTOR

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

HMC630LP3E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC630LP3E involves keeping the signal paths short, using a solid ground plane, and minimizing the number of vias. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. Additionally, the device should be placed close to the power supply and the output should be routed away from the input to minimize feedback.
  • To optimize power supply decoupling for the HMC630LP3E, use a combination of ceramic and electrolytic capacitors. Place a 100nF ceramic capacitor close to the device's power pins, and a 10uF electrolytic capacitor further away from the device. This will help to filter out high-frequency noise and ensure a stable power supply.
  • The HMC630LP3E can operate over a temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
  • To troubleshoot common issues with the HMC630LP3E, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input and output signals are within the recommended frequency range and amplitude. Check for any signs of overheating, and ensure that the device is properly soldered and mounted. If the issue persists, consult the datasheet and application notes for further guidance.
  • While the HMC630LP3E is designed for 50 ohm systems, it can be used in non-50 ohm systems with some adjustments. However, this may require additional impedance matching networks to ensure optimal performance. Consult the datasheet and application notes for guidance on impedance matching and system design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC630LP3E Overview

Use the download button to access the HMC630LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC63, or try a keyword search, such as RF/Microwave Modulator/Demodulators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
