HMC631LP3E - Analog Devices

Description: Modulator / Demodulator HBT Vector Modulator SMT, 1.8 - 2.7 GHz

Download HMC631LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

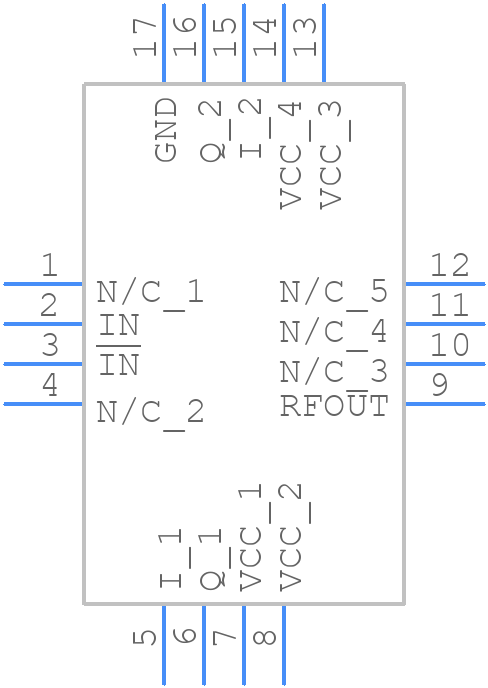

Symbol
HMC631LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC631LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC427ALP3E...
click to zoom
3D Models
HMC631LP3E - Analog Devices - 3D model - Quad Flat No-Lead - HMC427ALP3E...
click to zoom

HMC631LP3E Details

  • Manufacturer Part Number:

    HMC631LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, PLASTIC, SMT-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • JESD-609 Code:

    e3

  • Modulation Technique:

    VECTOR

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    1800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

HMC631LP3E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC631LP3E involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing signals under the device.
  • To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. The device requires a single 3.3V supply, and the VCC pin should be decoupled with a 10nF capacitor. Additionally, the EN pin should be tied to VCC or a digital signal to enable the device.
  • The HMC631LP3E is designed to handle up to 30dBm of output power. However, the actual power handling capability may vary depending on the specific application and operating conditions. It's recommended to consult with Analog Devices Inc. or a qualified RF engineer to determine the maximum power handling capability for a specific use case.
  • To troubleshoot common issues with the HMC631LP3E, start by verifying the device is properly biased and the input signal is within the recommended specifications. Check for any signs of overheating, and ensure the device is properly mounted and connected to the PCB. Use a spectrum analyzer to measure the output signal and identify any issues with spectral purity. Consult the datasheet and application notes for additional troubleshooting guidance.
  • Yes, the HMC631LP3E is a high-power device that requires proper thermal management to ensure reliable operation. The device has a maximum junction temperature of 150°C, and it's recommended to keep the case temperature below 85°C. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC631LP3E Overview

Use the download button to access the HMC631LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC63, or try a keyword search, such as RF/Microwave Modulator/Demodulators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
