HMC631LP3ETR - Analog Devices

Description: Vector modulator HMC631LP3ETR

Download HMC631LP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

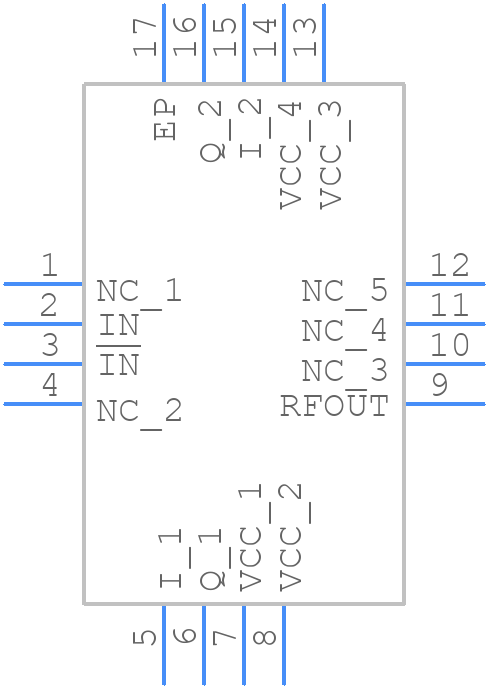

HMC631LP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC631LP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC631LP3ETR
click to zoom
3D Models
HMC631LP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - HMC631LP3ETR
click to zoom

HMC631LP3ETR Details

  • Manufacturer Part Number:

    HMC631LP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMT-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • Modulation Technique:

    VECTOR

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    1800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • RF/Microwave Device Type:

    MODULATOR

  • Surface Mount:

    YES

  • VSWR-Max:

    1.92

HMC631LP3ETR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance can be found in the application note AN-1369, which provides guidelines for designing a PCB layout that minimizes noise and ensures optimal performance of the HMC631LP3ETR.
  • To ensure the device is properly biased, follow the recommended biasing scheme outlined in the datasheet, and make sure to provide a stable voltage supply to the VCC and VEE pins. Additionally, ensure that the input and output pins are properly terminated to prevent reflections and noise.
  • The maximum operating temperature range for the HMC631LP3ETR is -40°C to +85°C. However, it's recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance and reliability.
  • To troubleshoot common issues with the HMC631LP3ETR, refer to the troubleshooting guide in the datasheet, which provides guidance on identifying and resolving common issues such as oscillations, noise, and output stage failures.
  • The recommended ESD protection for the HMC631LP3ETR is to use a human body model (HBM) ESD protection device with a rating of at least 2 kV. Additionally, ensure that the device is handled and stored in an ESD-safe environment to prevent damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC631LP3ETR Overview

Use the download button to access the HMC631LP3ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC63, or try a keyword search, such as RF/Microwave Modulator/Demodulators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
