HMC637ALP5E - Analog Devices

Description: ANALOG DEVICES - HMC637ALP5E - RF AMPLIFIER, DC-6GHZ, LFCSP-32

Download HMC637ALP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

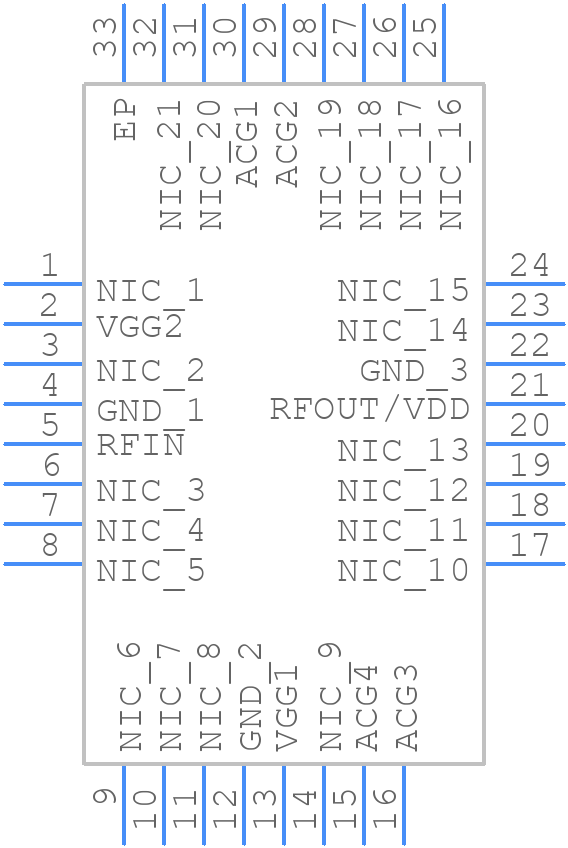

HMC637ALP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC637ALP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC637ALP5E
click to zoom
3D Models
HMC637ALP5E - Analog Devices - 3D model - Quad Flat No-Lead - HMC637ALP5E
click to zoom

HMC637ALP5E Details

  • Manufacturer Part Number:

    HMC637ALP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12 dB

  • Input Power-Max (CW):

    25 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC637ALP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC637ALP5E requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC637ALP5E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC637ALP5E has a parallel interface that can be connected to a microcontroller or FPGA using a standard parallel bus. Ensure the interface signals are properly terminated and buffered to prevent signal degradation.
  • The typical power consumption of the HMC637ALP5E is around 1.5W, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC637ALP5E Overview

Use the download button to access the HMC637ALP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC63, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
