HMC641ALP4E - Analog Devices

Description: 0.1 GHz to 20 GHz GaAs, Nonreflective, SP4T Switch,− 0.5 V to + 1 V 26.5 dBm −65°C to +150°C

Download HMC641ALP4E Model

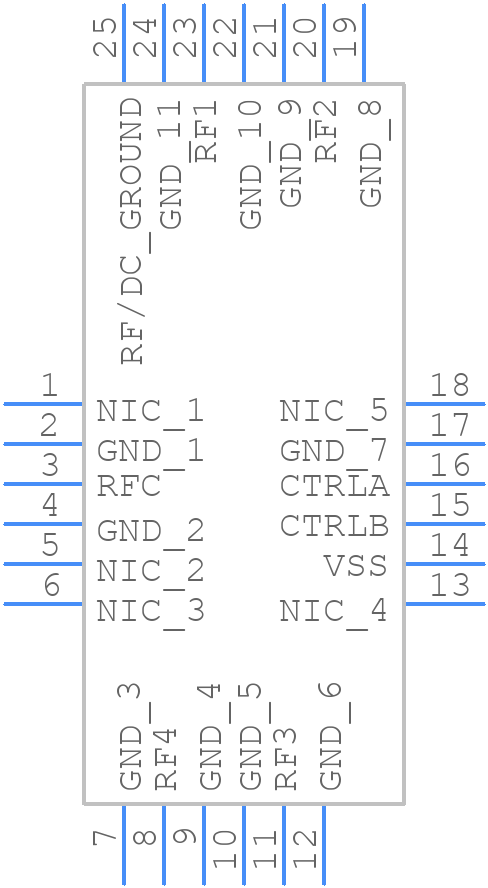

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC641ALP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-24-3
click to zoom
3D Models
HMC641ALP4E - Analog Devices  - 3D model - Quad Flat No-Lead - HCP-24-3
click to zoom

HMC641ALP4E Details

  • Manufacturer Part Number:

    HMC641ALP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • 1dB Compression Point:

    22 dBm

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    17 dBm

  • Insertion Loss-Max:

    4.2 dB

  • Isolation-Min:

    30 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.1 µs

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    -5/-3 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    5 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.29
